Subversion : Access to Repositories via HTTP2026/07/01

	Access to Repositories via HTTP, without running [svnserve]. This setting is not effective to the case you access via [svn://] or [file://].
[1]	Install Apache2, refer to here.
[2]	Configure SSL/TLS to Apache2, refer to here. (Optional for this setting)
[3]	Install required packages.

root@dlp:~#

apt -y install libapache2-mod-svn

[4]	Configure Apache2. For example, Set HTTP access to [/var/svn/repos/project] repository.

root@dlp:~#

vi /etc/apache2/conf-available/subversion.conf

# create new

<Location /project>
    DAV svn
    AuthType Basic
    AuthName "DAV SVN"
    AuthUserFile /var/svn/.svnpasswd
    Require valid-user
    SVNPath /var/svn/repos/project
</Location>

root@dlp:~#

a2enmod dav_svn

root@dlp:~#

a2enconf subversion

root@dlp:~#

chown -R www-data:www-data /var/svn/repos/project

root@dlp:~#

systemctl restart apache2

# add users

root@dlp:~#

htpasswd -Bc /var/svn/.svnpasswd ubuntu

New password:
Re-type new password:
Adding password for user ubuntu

[5]	If also set access permission, Configure like follow.

root@dlp:~#

vi /var/svn/repos/project/conf/authzsvn.conf

# create new
# set group

[groups]
developer = ubuntu,resolute
operator = debian

# everyone can [Read] access on root directory

[/]
* = r

# only [developer] group can [Read/Write] under the [trunk] directory

[project:/trunk]
@developer = rw

# only [operator] group can [Read/Write] under the [branches] directory

[project:/branches]
@operator = rw

# only [operator] group can [Read/Write] under the [tags] directory

[project:/tags]
@operator = rw

root@dlp:~#

vi /etc/apache2/conf-available/subversion.conf

<Location /project>
    DAV svn
    AuthType Basic
    AuthName "DAV SVN"
    AuthUserFile /var/svn/.svnpasswd
    Require valid-user
    SVNPath /var/svn/repos/project
    # add the line
    AuthzSVNAccessFile /var/svn/repos/project/conf/authzsvn.conf
</Location>

root@dlp:~#

systemctl reload apache2

[6]	Verify settings to access via HTTP/HTTPS from any Hosts.

resolute@node01:~$

svn --username ubuntu list https://dlp.srv.world/project

Authentication realm: <https://dlp.srv.world:443> DAV SVN
Password for 'ubuntu': ********


-----------------------------------------------------------------------
ATTENTION!  Your password for authentication realm:

   <https://dlp.srv.world:443> DAV SVN

can only be stored to disk unencrypted!  You are advised to configure
your system so that Subversion can store passwords encrypted, if
possible.  See the documentation for details.

You can avoid future appearances of this warning by setting the value
of the 'store-plaintext-passwords' option to either 'yes' or 'no' in
'/home/resolute/.subversion/servers'.
-----------------------------------------------------------------------
Store password unencrypted (yes/no)? no
branches/
tags/
trunk/

resolute@node01:~$

echo 'store-plaintext-passwords = no' >> ~/.subversion/servers

resolute@node01:~$

mkdir work

resolute@node01:~$

cd work

resolute@node01:~/work$

svn --username ubuntu co https://dlp.srv.world/project

Authentication realm: <https://dlp.srv.world:443> DAV SVN
Password for 'ubuntu': ********

A    project/branches
A    project/tags
A    project/trunk
A    project/trunk/index.html
Checked out revision 4.

resolute@node01:~/work$

cd project/trunk

# after creating or editing any files under the repository,
# try to [commit] with [debian] user

resolute@node01:~/work/project/trunk$

echo index.html >> index.html

resolute@node01:~/work/project/trunk$

svn --username debian ci index.html -m "update by debian"

Authentication realm: <https://dlp.srv.world:443> DAV SVN
Password for 'debian': ********

Sending        index.html
Transmitting file data .svn: E195023: Commit failed (details follow):
svn: E195023: Changing file '/home/resolute/work/project/trunk/index.html' is forbidden by the server
svn: E175013: While preparing '/home/resolute/work/project/trunk/index.html' for commit
svn: E175013: Access to '/project/!svn/txr/6-6/trunk/index.html' forbidden
# denied normally as settings

# [commit] with [resolute] user

resolute@node01:~/work/project/trunk$

svn --username resolute ci index.html -m "update by resolute"

Authentication realm: <https://dlp.srv.world:443> DAV SVN
Password for 'resolute': ********

Sending        index.html
Transmitting file data .done
Committing transaction...
Committed revision 7.
# done normally as settings

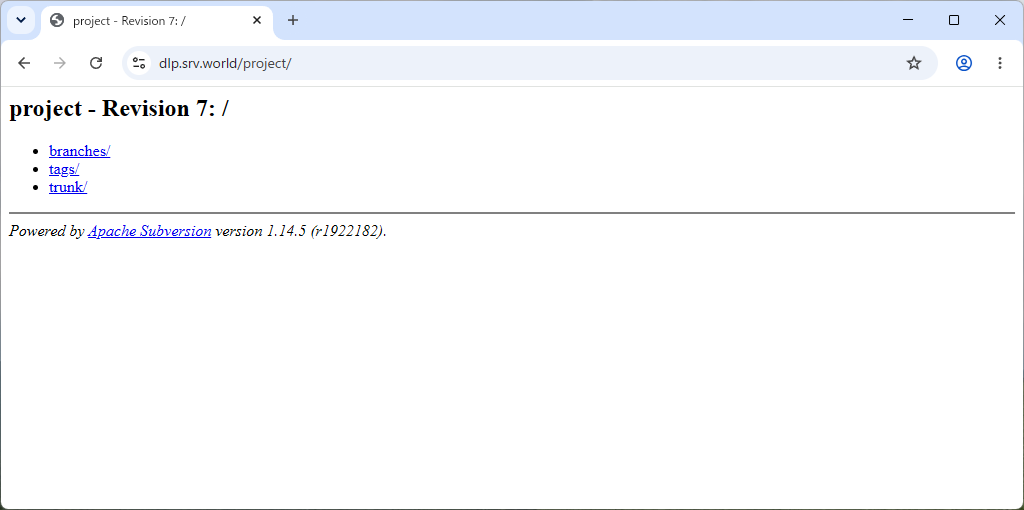

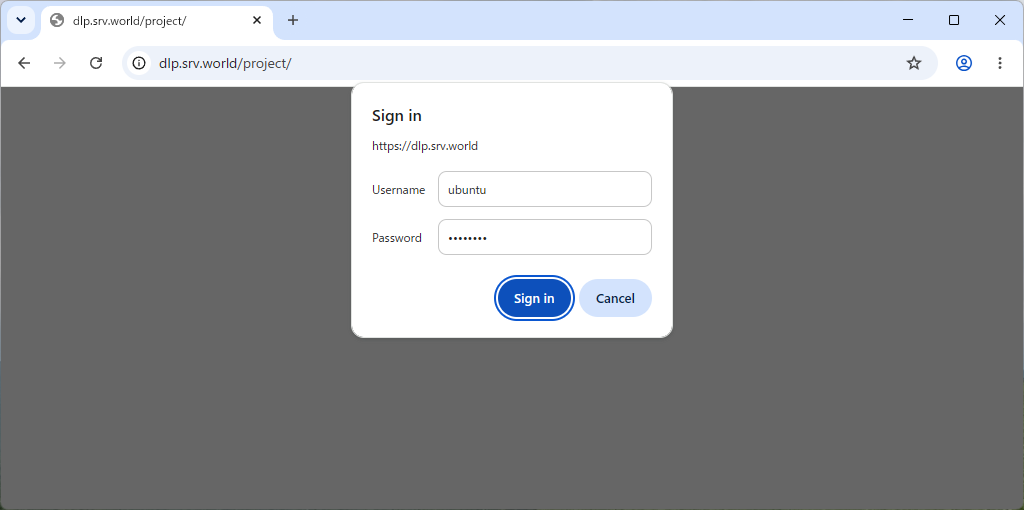

[7]	It's also possible to access on Web browser (read only).
