Ubuntu 26.04

MicroK8s : Enable Dashboard2026/05/19



To enable Dashboard on MicroK8s Cluster, Configure like follows.

[1] Enable Dashboard add-on on primary Node.
root@dlp:~#
microk8s enable dashboard

Infer repository core for addon dashboard
Enabling metrics-server
Infer repository core for addon metrics-server
Addon core/metrics-server is already enabled
Infer repository core for addon helm3
Addon core/helm3 is already enabled
Enabling Kubernetes dashboard
Release "kubernetes-dashboard" does not exist. Installing it now.
NAME: kubernetes-dashboard
LAST DEPLOYED: Tue May 19 05:15:33 2026
NAMESPACE: kubernetes-dashboard
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
*************************************************************************************************
*** PLEASE BE PATIENT: Kubernetes Dashboard may need a few minutes to get up and become ready ***
*************************************************************************************************

Congratulations! You have just installed Kubernetes Dashboard in your cluster.

To access Dashboard run:
  kubectl -n kubernetes-dashboard port-forward svc/kubernetes-dashboard-kong-proxy 8443:443

NOTE: In case port-forward command does not work, make sure that kong service name is correct.
      Check the services in Kubernetes Dashboard namespace using:
        kubectl -n kubernetes-dashboard get svc

Dashboard will be available at:
  https://localhost:8443
Applying manifest
secret/microk8s-dashboard-token created

If RBAC is not enabled access the dashboard using the token retrieved with:

microk8s kubectl describe secret -n kube-system microk8s-dashboard-token

Use this token in the https login UI of the kubernetes-dashboard service.

In an RBAC enabled setup (microk8s enable RBAC) you need to create a user with restricted
permissions as shown in:
https://github.com/kubernetes/dashboard/blob/master/docs/user/access-control/creating-sample-user.md

root@dlp:~#
microk8s kubectl get pods -n kubernetes-dashboard

NAME                                                    READY   STATUS    RESTARTS   AGE
kubernetes-dashboard-api-6677cc4df8-9l7t7               1/1     Running   0          100s
kubernetes-dashboard-auth-789bbc9f84-tdln2              1/1     Running   0          100s
kubernetes-dashboard-kong-6465d78779-5q45l              1/1     Running   0          100s
kubernetes-dashboard-metrics-scraper-85448cbcc4-4j62k   1/1     Running   0          100s
kubernetes-dashboard-web-7958b4cc8f-7t5z4               1/1     Running   0          100s

# confirm security token

root@dlp:~#
microk8s kubectl describe secret -n kube-system microk8s-dashboard-token | grep ^token

token:      eyJhbGciOiJSUzI1NiIsImtp.....

# set port-forwarding to enable external access if you need

root@dlp:~#
microk8s kubectl port-forward -n kubernetes-dashboard service/kubernetes-dashboard-kong-proxy --address 0.0.0.0 10443:443

Forwarding from 0.0.0.0:10443 -> 8443

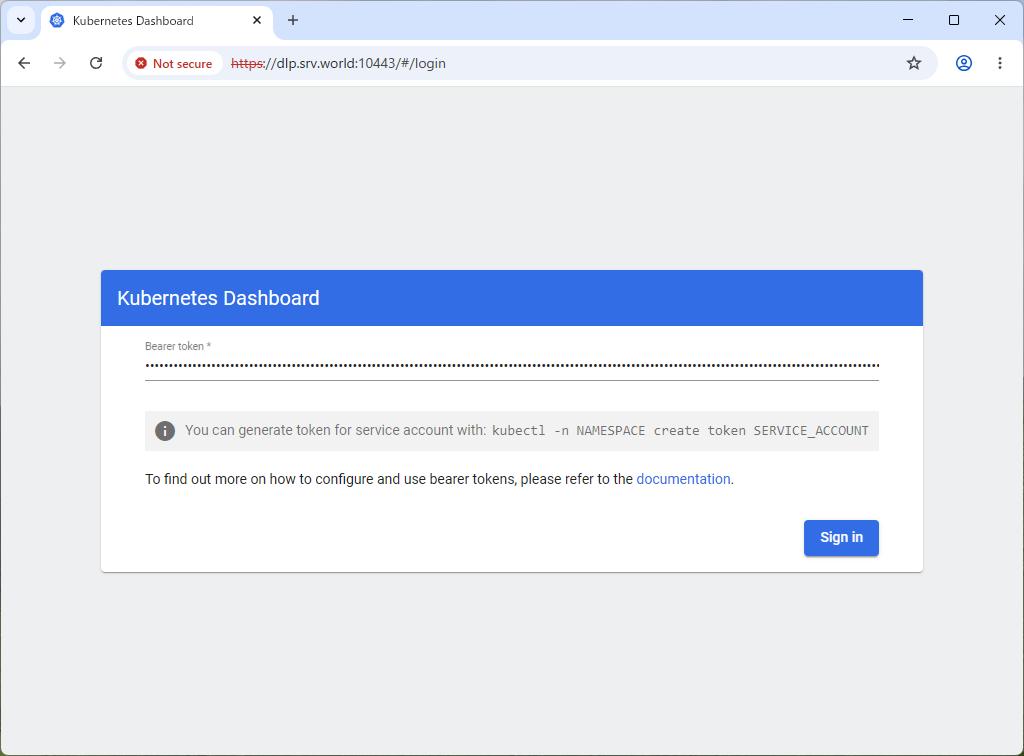

[2] Access to [https://(MicroK8s primary node's Hostname or IP address):10443/] with an web browser on any Client computer in local network. Copy and paste the security token you confirmed on [1] to [Enter token] section and Click [Sing In] button.

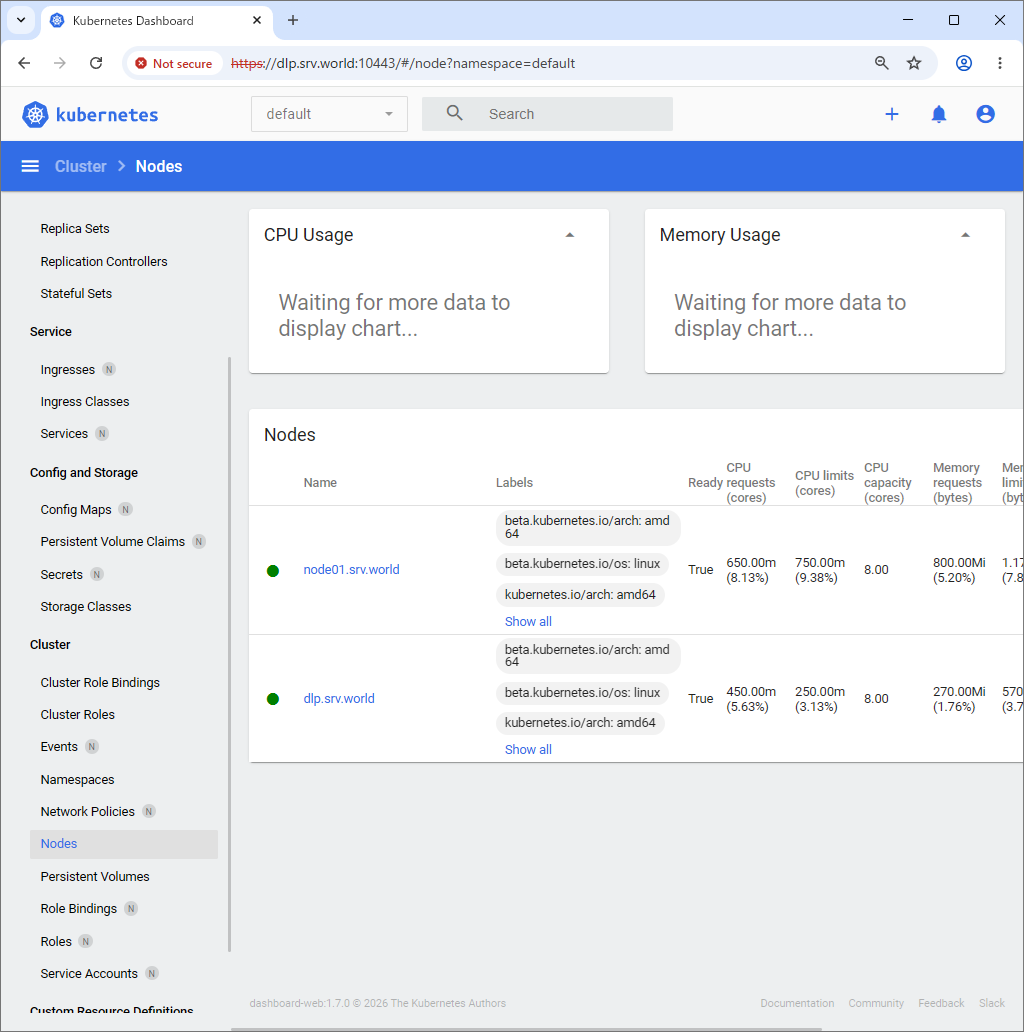

[3] After authentication successfully passed, MicroK8s Cluster Dashboard is displayed.
