KVM : VNC connection (Client) : Ubuntu2026/04/29 |
|
Connect to a Virtual machine that is running with enabling VNC. |
|

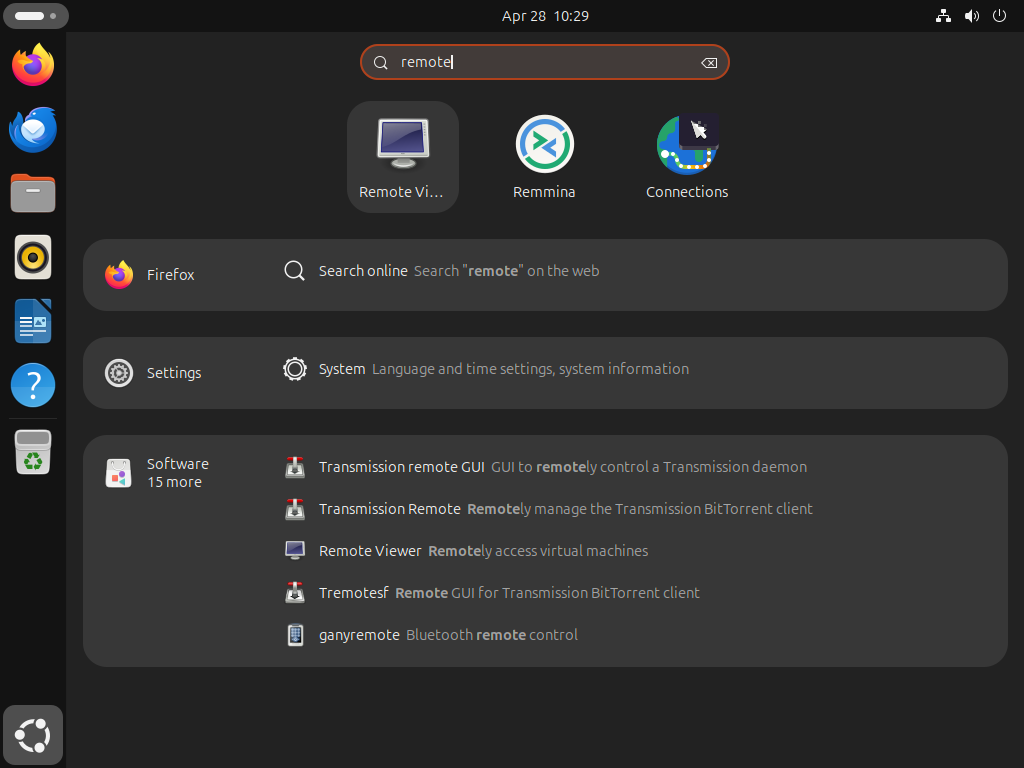

| [1] | On Ubuntu client with Desktop Environment, Run [apt -y install virt-viewer] to install Virt Viewer and start [Remote Viewer] like follows. |
|

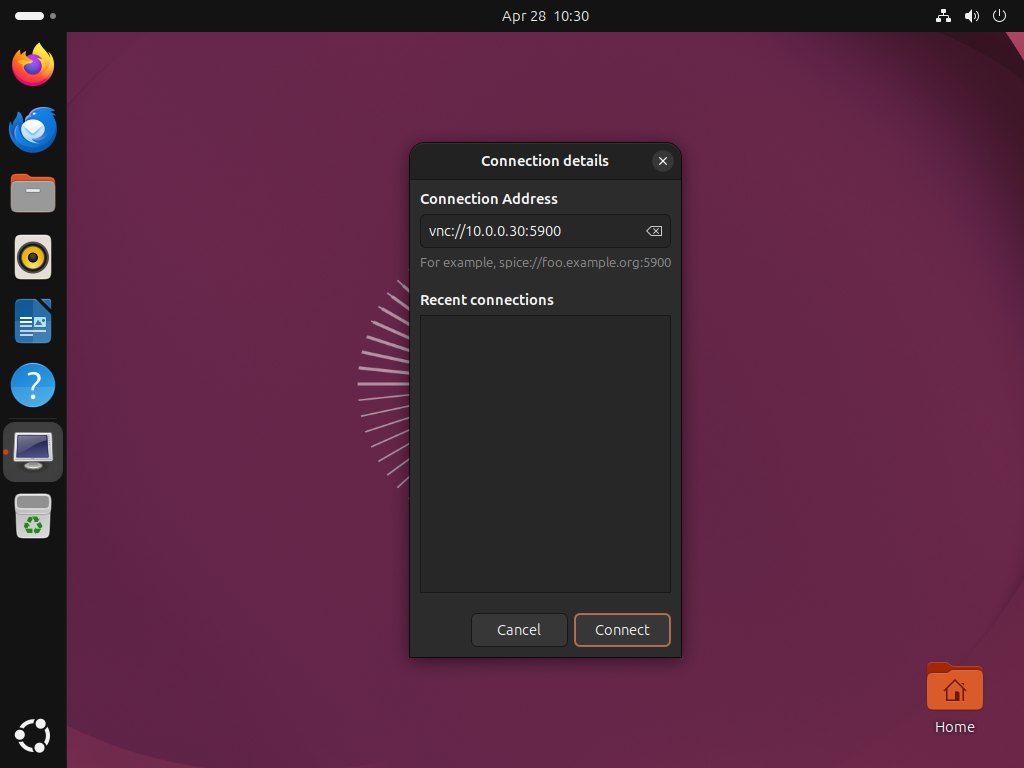

| [2] | Input [vnc://(server's hostname or IP address):(port you set)] and click the [Connect] button. |
|

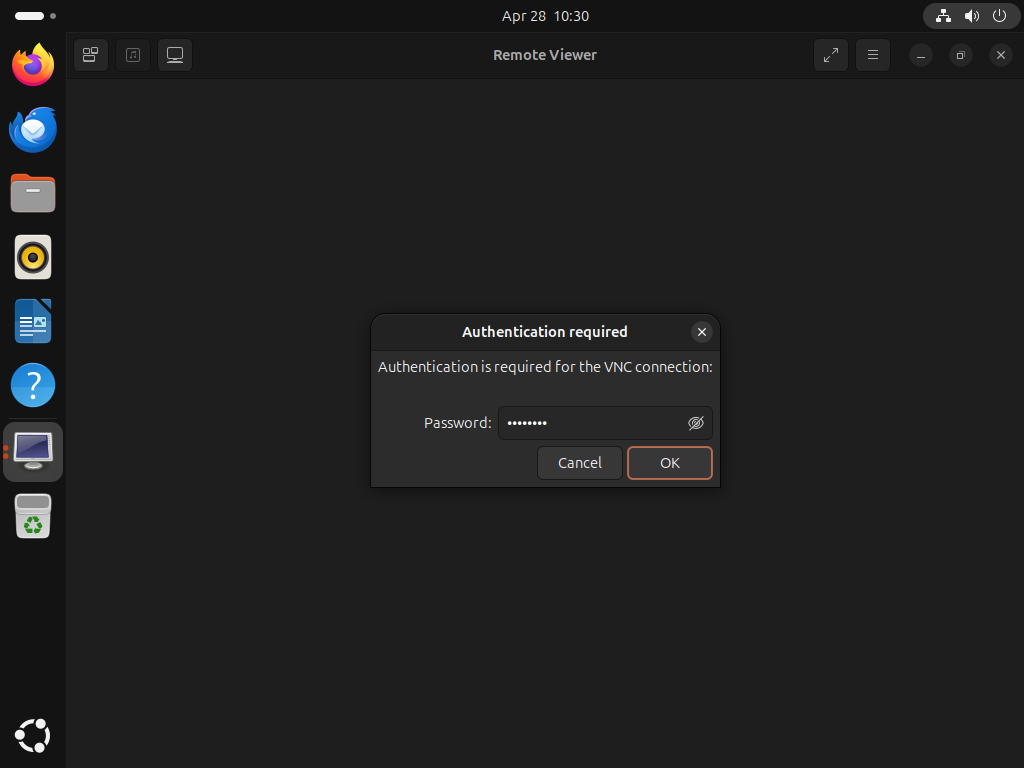

| [3] | Input password you set and Click the [OK] button. |
|

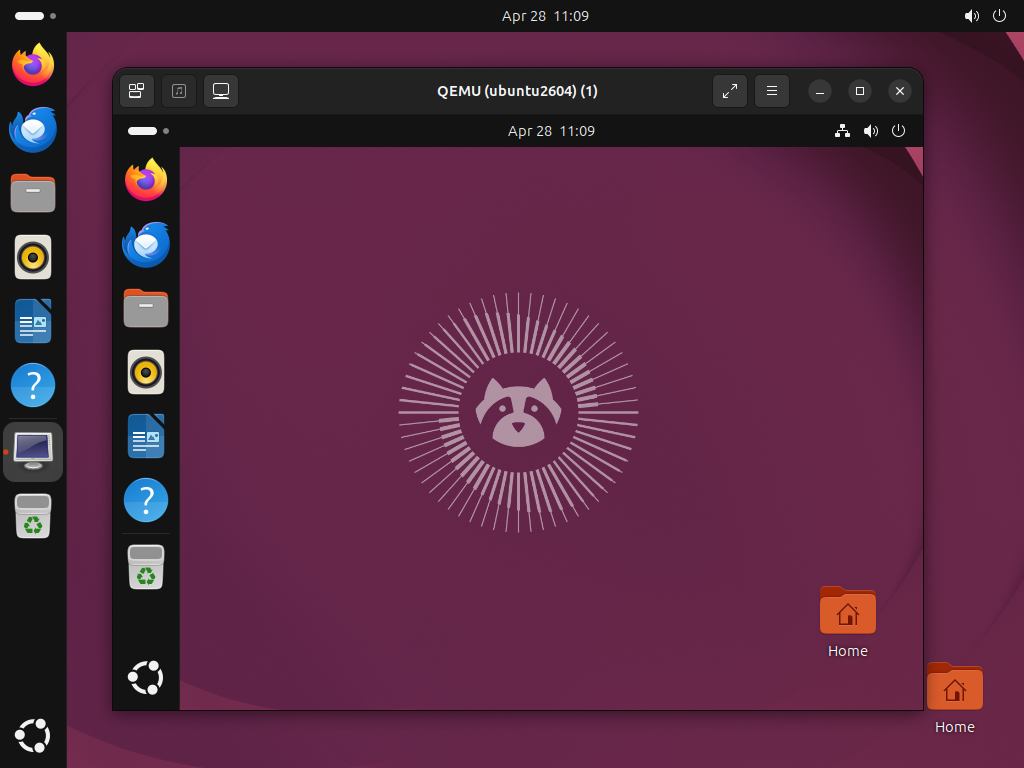

| [4] | If successfully passed authentication, it's possible to connect like follows. |
|
VNC Client : Windows |
|
It's possible to connect to VMs with VNC from Windows clients.
|
|
| [5] |

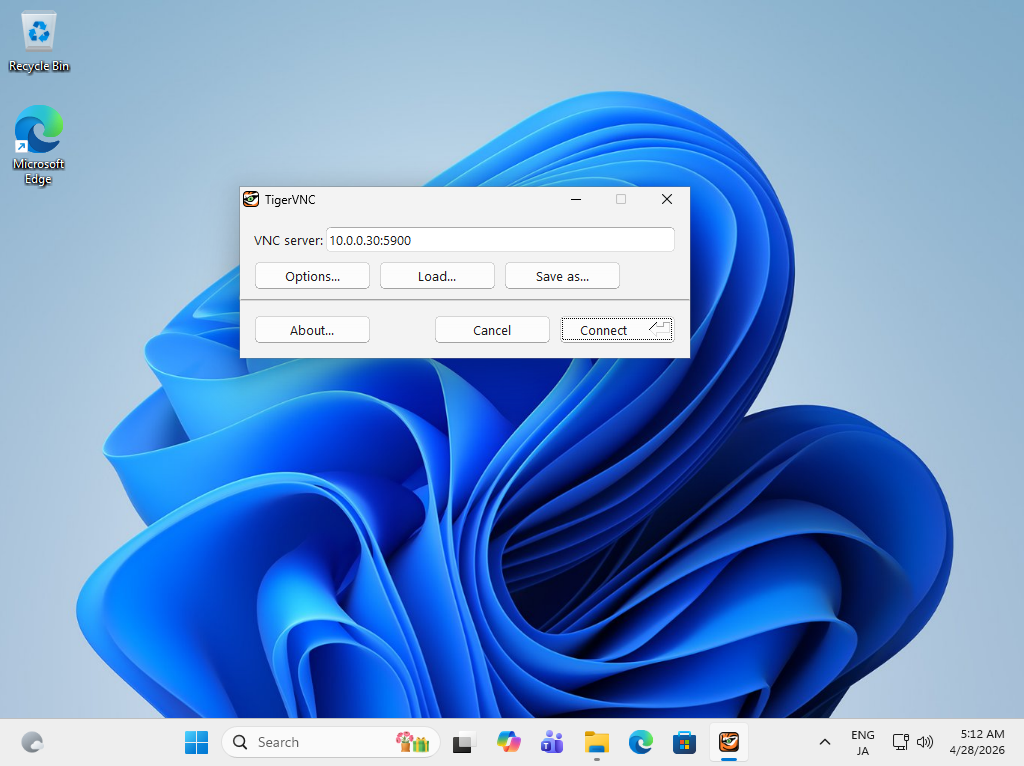

Install any VNC Viewer on Windows client. Input [(server's hostname or IP address):(port you set)] like follows and connect. |
|

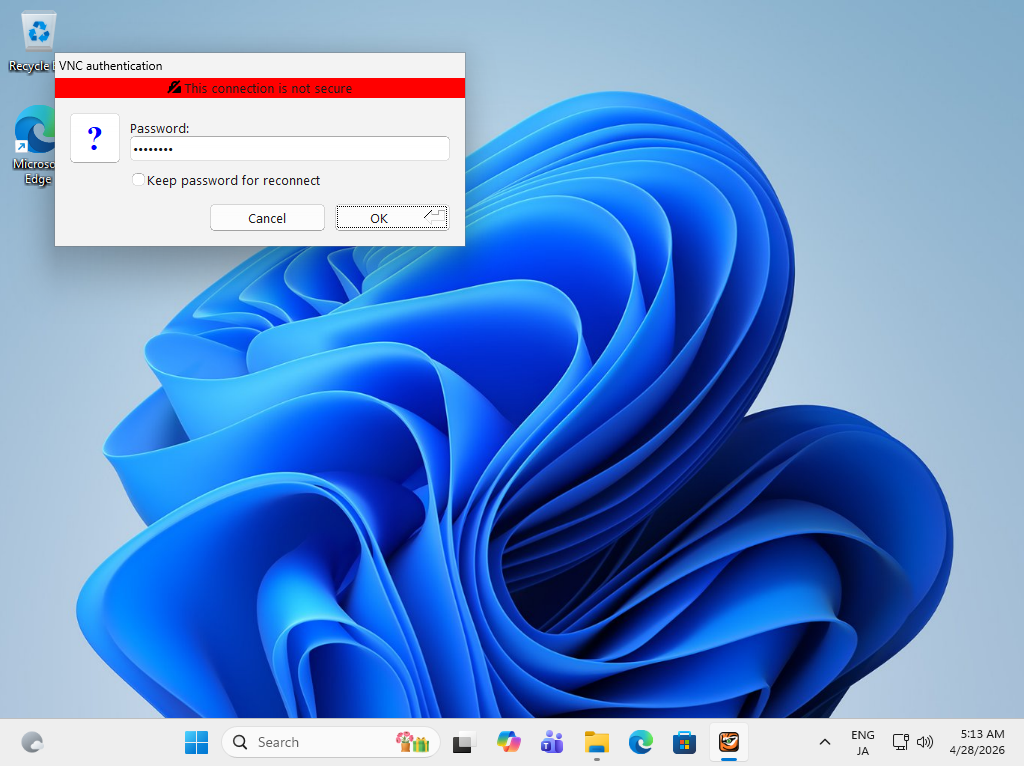

| [6] | VNC password is required to input for authentication. |
|

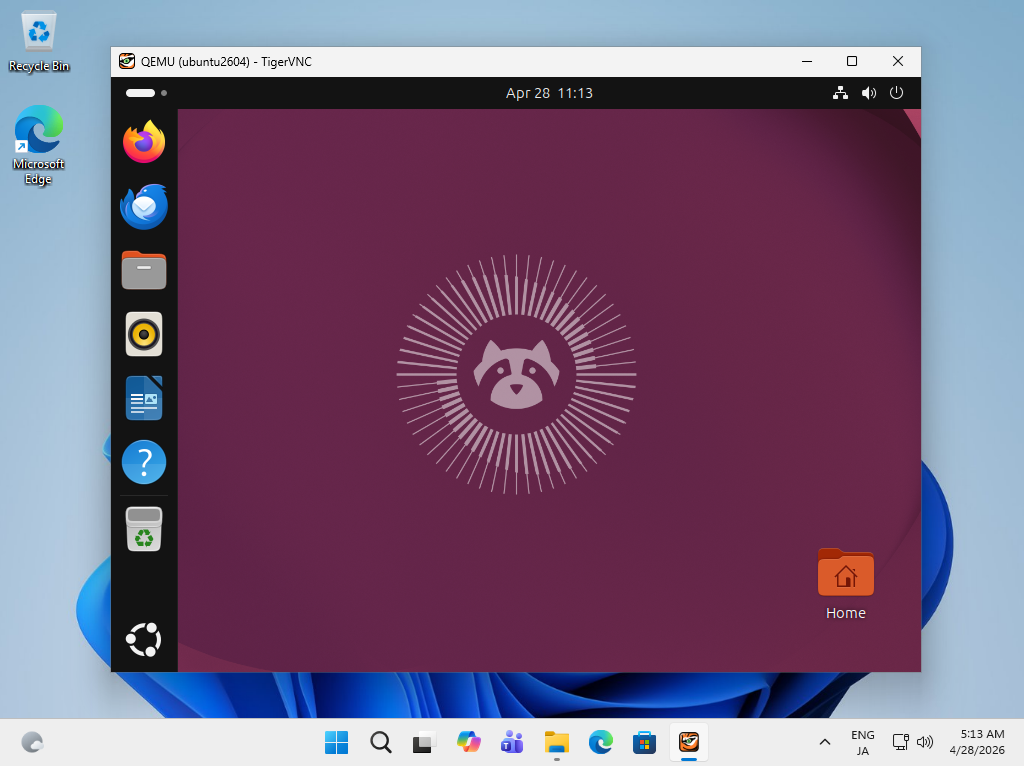

| [7] | If successfully passed authentication, it's possible to connect to VM with VNC like follows. |
|
