DHCP : Configure DHCP Client : Ubuntu2026/04/24

	Configure DHCP Client to get IP address from DHCP Server in local network.
[1]	For Ubuntu Clients, Configure like follows.

root@dlp:~#

vi /etc/netplan/01-netcfg.yaml

# enable dhcp4 and comment out static IP related settings

network:
  ethernets:
    enp1s0:
      dhcp4: true
      #addresses: [10.0.0.30/24]
      #routes:
      #  - to: default
      #    via: 10.0.0.1
      #    metric: 100
      #nameservers:
      #  addresses: [10.0.0.10,10.0.0.11]
      dhcp6: false
  version: 2

root@dlp:~#

netplan apply

DHCP : Configure DHCP Client : Windows

Configure DHCP Client on Windows computer. This example is based on Windows 11.

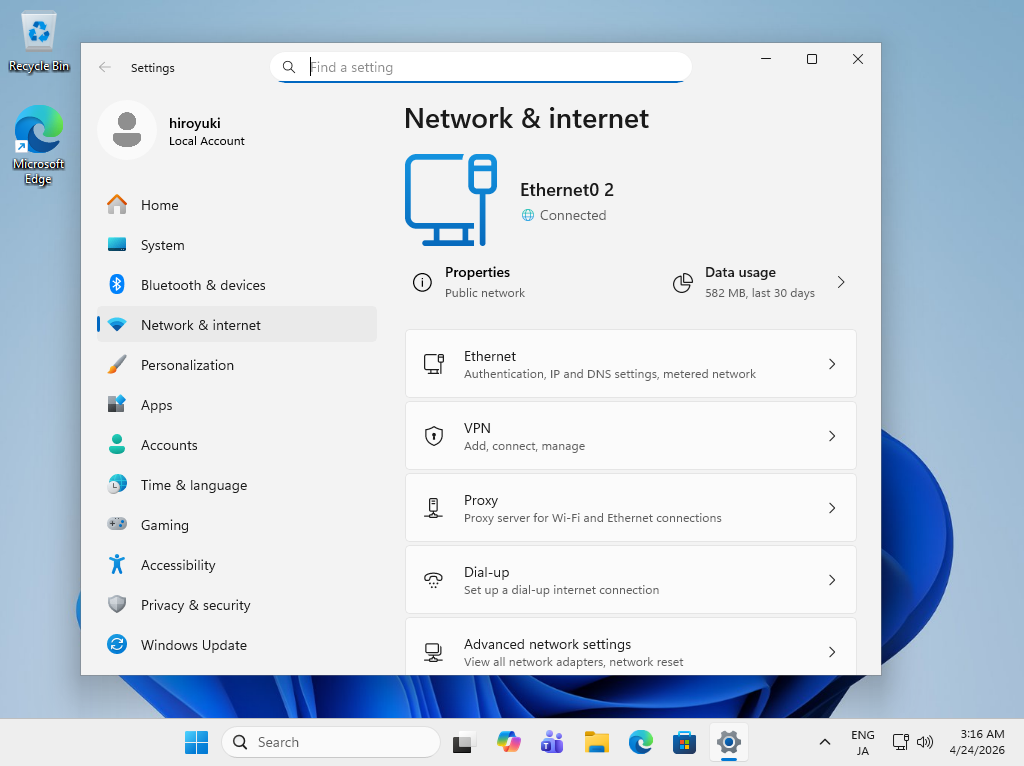

[2]	Right-click the start button and open the [Network connection], and then click the [Properties].

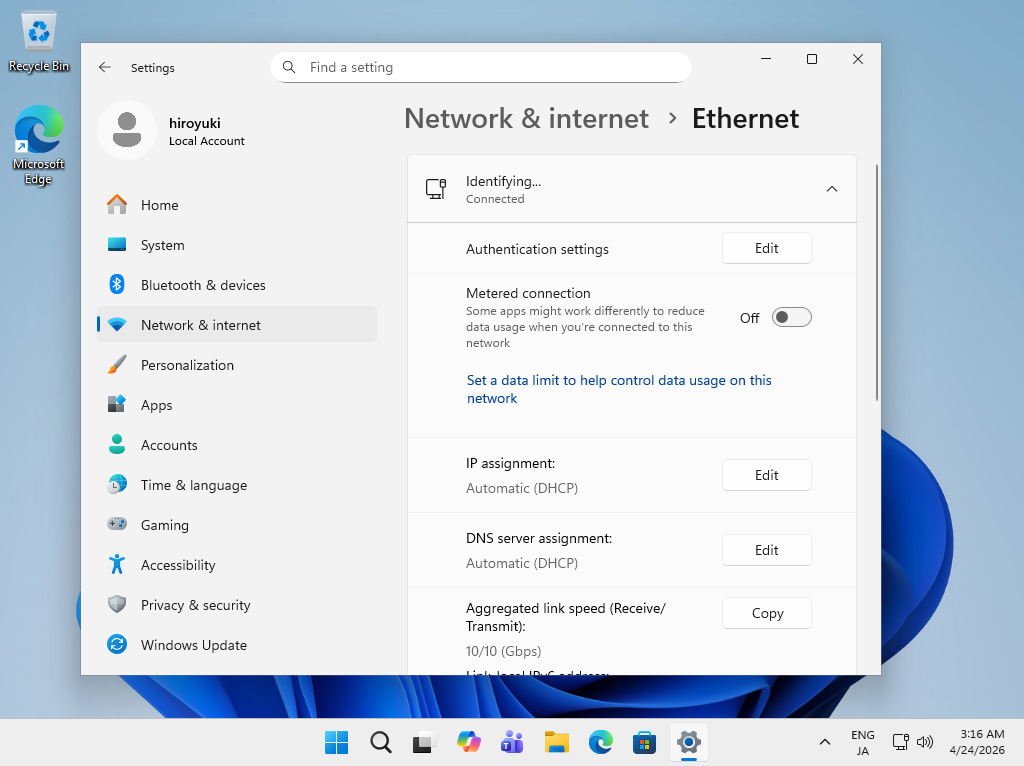

[3]	That's OK if [IP assignment] is [DHCP]. If not, click the [Edit] button.

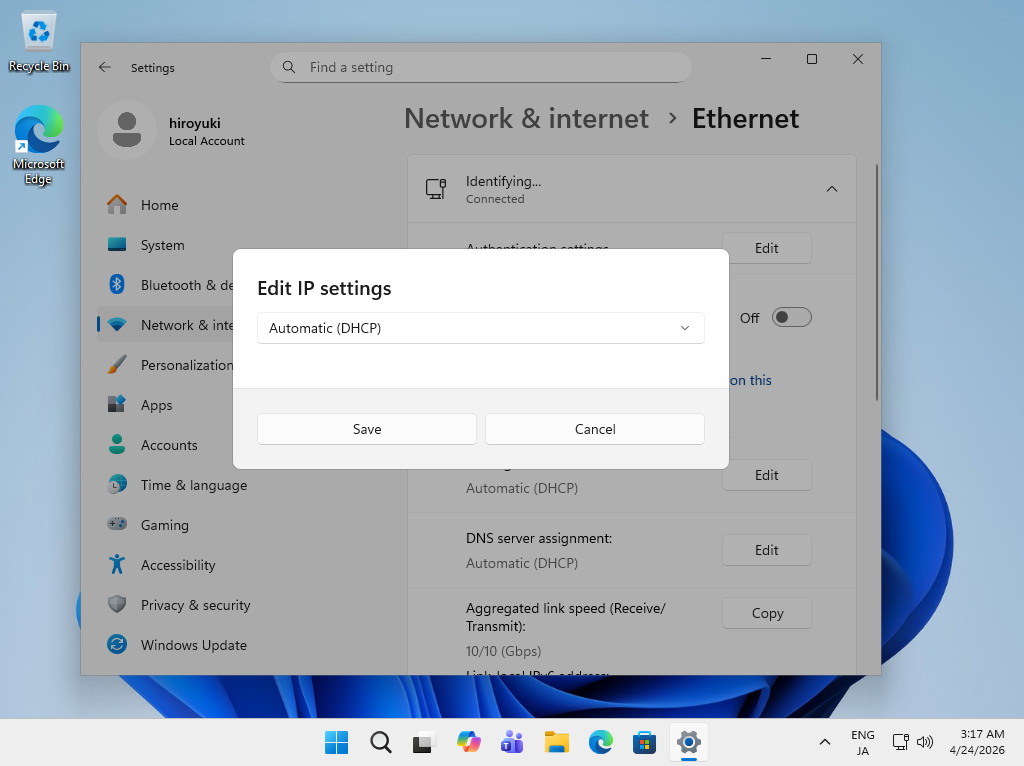

[4]	If clicked [Edit] button on previous section, following window is shown. Select [Automatic (DHCP)] and save.

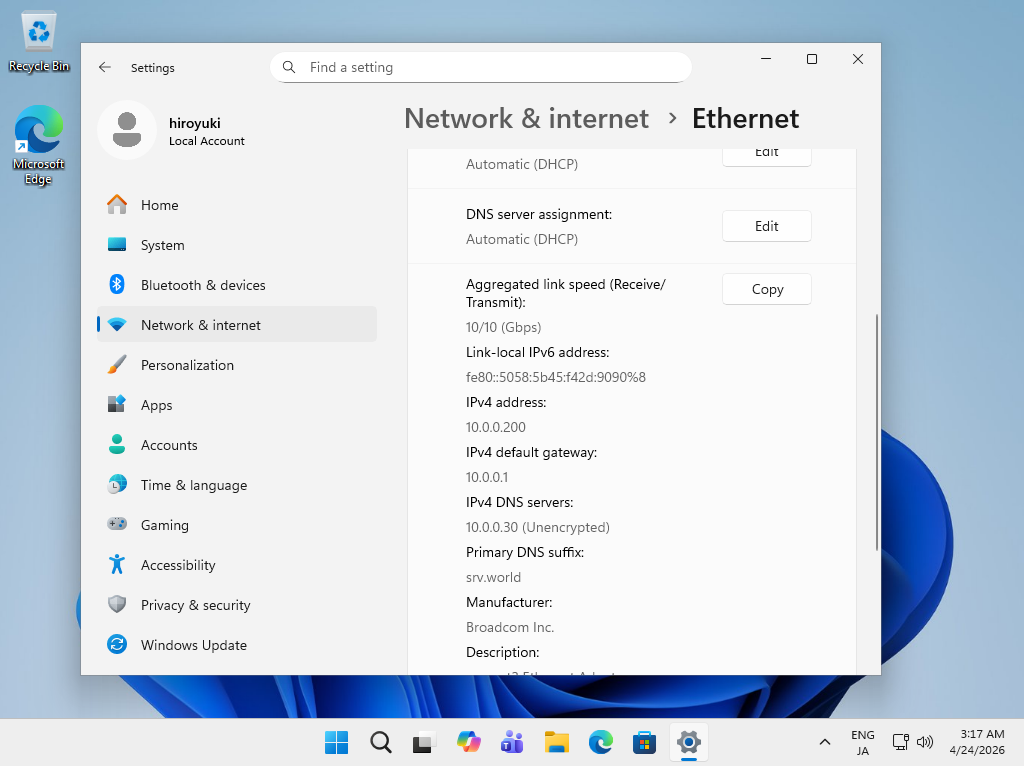

[5]	Confirm the Network connection status, that's OK if IP is assigned.
