Kubernetes : Deploy Prometheus2024/06/07

Deploy Prometheus to monitor metrics in Kubernetes Cluster.

This example is based on the environment like follows.

+----------------------+   +----------------------+
|  [ ctrl.srv.world ]  |   |   [ dlp.srv.world ]  |
|     Manager Node     |   |     Control Plane    |
+-----------+----------+   +-----------+----------+
        eth0|10.0.0.25             eth0|10.0.0.30
            |                          |
------------+--------------------------+-----------
            |                          |
        eth0|10.0.0.51             eth0|10.0.0.52
+-----------+----------+   +-----------+----------+
| [ node01.srv.world ] |   | [ node02.srv.world ] |
|     Worker Node#1    |   |     Worker Node#2    |
+----------------------+   +----------------------+

[1]	Persistent storage is needed for Prometheus. On this example, configure [nfs.srv.world:/home/nfsshare] directory on NFS server as external storage, and also configure dynamic volume provisioning with NFS plugin like the example [1] - [4] of here.
[2]	Install Prometheus chart with Helm.

# output config and change some settings

root@ctrl:~#

helm inspect values bitnami/kube-prometheus > prometheus.yaml

root@ctrl:~#

vi prometheus.yaml

.....
.....
    line 21 : specify [storageClass] to use
    storageClass: "nfs-client"
.....
.....
.....
    line 1249 : specify [storageClass] to use
    storageClass: "nfs-client"
.....
.....
.....
    line 2327 : specify [storageClass] to use
    storageClass: "nfs-client"

# create a namespace for Prometheus

root@ctrl:~#

kubectl create namespace monitoring

namespace/monitoring created

root@ctrl:~#

helm install prometheus --namespace monitoring -f prometheus.yaml bitnami/kube-prometheus

NAME: prometheus
LAST DEPLOYED: Fri Jun  7 05:04:00 2024
NAMESPACE: monitoring
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CHART NAME: kube-prometheus
CHART VERSION: 9.4.1
APP VERSION: 0.74.0

** Please be patient while the chart is being deployed **

Watch the Prometheus Operator Deployment status using the command:

    kubectl get deploy -w --namespace monitoring -l app.kubernetes.io/name=kube-prometheus-operator,app.kubernetes.io/instance=prometheus

Watch the Prometheus StatefulSet status using the command:

    kubectl get sts -w --namespace monitoring -l app.kubernetes.io/name=kube-prometheus-prometheus,app.kubernetes.io/instance=prometheus

Prometheus can be accessed via port "9090" on the following DNS name from within your cluster:

    prometheus-kube-prometheus-prometheus.monitoring.svc.cluster.local

To access Prometheus from outside the cluster execute the following commands:

    echo "Prometheus URL: http://127.0.0.1:9090/"
    kubectl port-forward --namespace monitoring svc/prometheus-kube-prometheus-prometheus 9090:9090

Watch the Alertmanager StatefulSet status using the command:

    kubectl get sts -w --namespace monitoring -l app.kubernetes.io/name=kube-prometheus-alertmanager,app.kubernetes.io/instance=prometheus

Alertmanager can be accessed via port "9093" on the following DNS name from within your cluster:

    prometheus-kube-prometheus-alertmanager.monitoring.svc.cluster.local

To access Alertmanager from outside the cluster execute the following commands:

    echo "Alertmanager URL: http://127.0.0.1:9093/"
    kubectl port-forward --namespace monitoring svc/prometheus-kube-prometheus-alertmanager 9093:9093

WARNING: There are "resources" sections in the chart not set. Using "resourcesPreset" is not recommended for production. For production installations, please set the following values according to your workload needs:
  - alertmanager.resources
  - blackboxExporter.resources
  - operator.resources
  - prometheus.resources
  - prometheus.thanos.resources
+info https://kubernetes.io/docs/concepts/configuration/manage-resources-containers/

root@ctrl:~#

kubectl get pods -n monitoring

NAME                                                          READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0        2/2     Running   0          66s
prometheus-kube-prometheus-blackbox-exporter-7f9487fc-45vwl   1/1     Running   0          88s
prometheus-kube-prometheus-operator-6d88786cf8-kmwdx          1/1     Running   0          88s
prometheus-kube-state-metrics-5bfdb58c6d-9jzrk                1/1     Running   0          88s
prometheus-node-exporter-bzswr                                1/1     Running   0          88s
prometheus-node-exporter-tdn7z                                1/1     Running   0          88s
prometheus-prometheus-kube-prometheus-prometheus-0            2/2     Running   0          66s

# if access from outside of cluster, set port-forwarding

root@ctrl:~#

kubectl port-forward -n monitoring service/prometheus-kube-prometheus-prometheus --address 0.0.0.0 9090:9090 &

[3]	If you deploy Grafana, too, It's possible like follows.

# output config and change some settings

root@ctrl:~#

helm inspect values bitnami/grafana > grafana.yaml

root@ctrl:~#

vi grafana.yaml

# line 612 : change to your [storageClass]
persistence:
  enabled: true
  ## If defined, storageClassName: <storageClass>
  ## If set to "-", storageClassName: "", which disables dynamic provisioning
  ## If undefined (the default) or set to null, no storageClassName spec is
  ##   set, choosing the default provisioner.  (gp2 on AWS, standard on
  ##   GKE, AWS & OpenStack)
  ##
  storageClass: "nfs-client"

root@ctrl:~#

helm install grafana --namespace monitoring -f grafana.yaml bitnami/grafana

NAME: grafana
LAST DEPLOYED: Fri Jun  7 05:07:29 2024
NAMESPACE: monitoring
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CHART NAME: grafana
CHART VERSION: 11.3.3
APP VERSION: 11.0.0

** Please be patient while the chart is being deployed **

1. Get the application URL by running these commands:
    echo "Browse to http://127.0.0.1:8080"
    kubectl port-forward svc/grafana 8080:3000 &

2. Get the admin credentials:

    echo "User: admin"
    echo "Password: $(kubectl get secret grafana-admin --namespace monitoring -o jsonpath="{.data.GF_SECURITY_ADMIN_PASSWORD}" | base64 -d)"
# Note: Do not include grafana.validateValues.database here. See https://github.com/bitnami/charts/issues/20629


WARNING: There are "resources" sections in the chart not set. Using "resourcesPreset" is not recommended for production. For production installations, please set the following values according to your workload needs:
  - grafana.resources
+info https://kubernetes.io/docs/concepts/configuration/manage-resources-containers/

root@ctrl:~#

kubectl get pods -n monitoring

NAME                                                          READY   STATUS    RESTARTS   AGE
alertmanager-prometheus-kube-prometheus-alertmanager-0        2/2     Running   0          4m10s
grafana-66b58c8f46-kcgjq                                      1/1     Running   0          64s
prometheus-kube-prometheus-blackbox-exporter-7f9487fc-45vwl   1/1     Running   0          4m32s
prometheus-kube-prometheus-operator-6d88786cf8-kmwdx          1/1     Running   0          4m32s
prometheus-kube-state-metrics-5bfdb58c6d-9jzrk                1/1     Running   0          4m32s
prometheus-node-exporter-bzswr                                1/1     Running   0          4m32s
prometheus-node-exporter-tdn7z                                1/1     Running   0          4m32s
prometheus-prometheus-kube-prometheus-prometheus-0            2/2     Running   0          4m10s

# if access from outside of cluster, set port-forwarding

root@ctrl:~#

kubectl port-forward -n monitoring service/grafana --address 0.0.0.0 3000:3000 &

[4]

If you access to Prometheus UI from a Host in cluster, access to the URL below with an Web browser.

⇒ http://prometheus-kube-prometheus-prometheus.monitoring.svc.cluster.local

If you set port-forwarding, access to the URL below on a client computer in your local network.

⇒ http://(Manager Node Hostname or IP address):(setting port)/

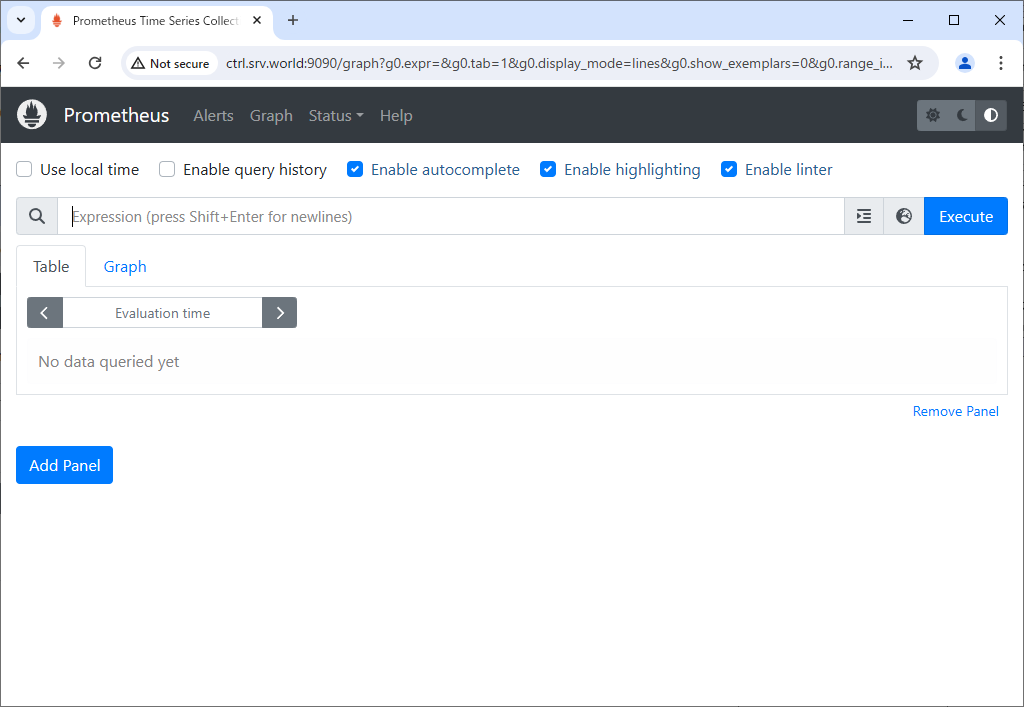

That's OK if following Prometheus UI is displayed.

[5]

If you access to Grafana from a Host in cluster, access to the URL below with an Web browser.

⇒ http://grafana.monitoring.svc.cluster.local

If you set port-forwarding, access to the URL below on a client computer in your local network.

⇒ http://(Manager Node Hostname or IP address):(setting port)/

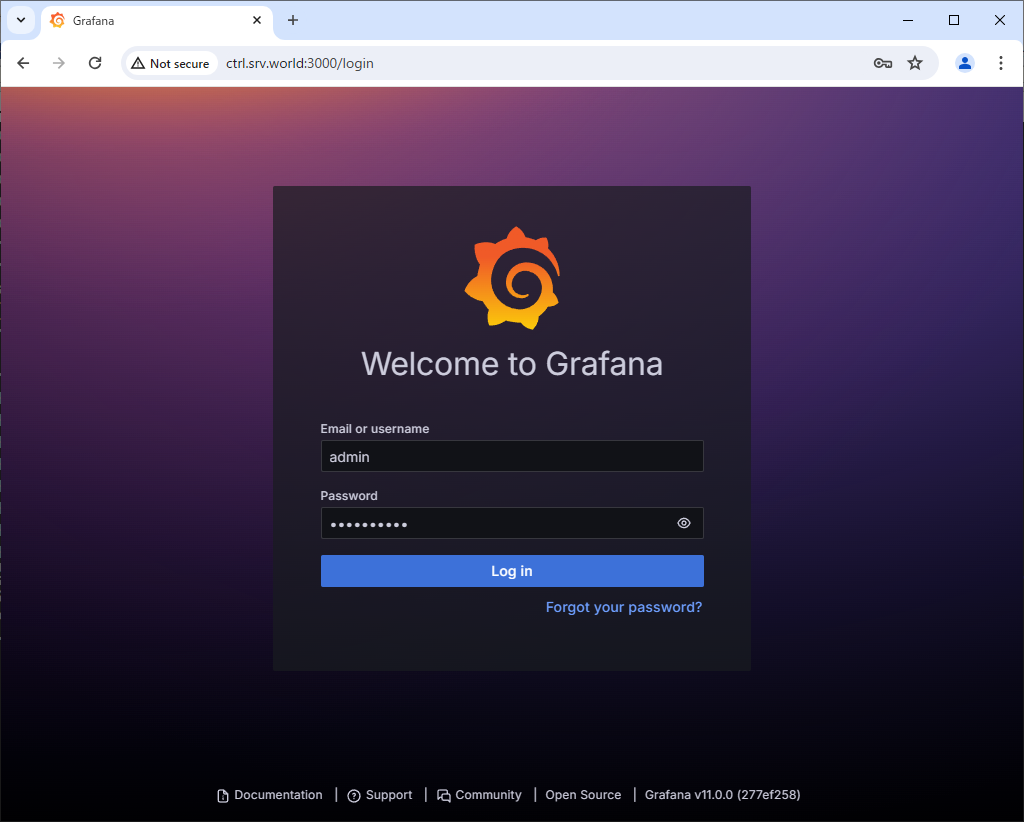

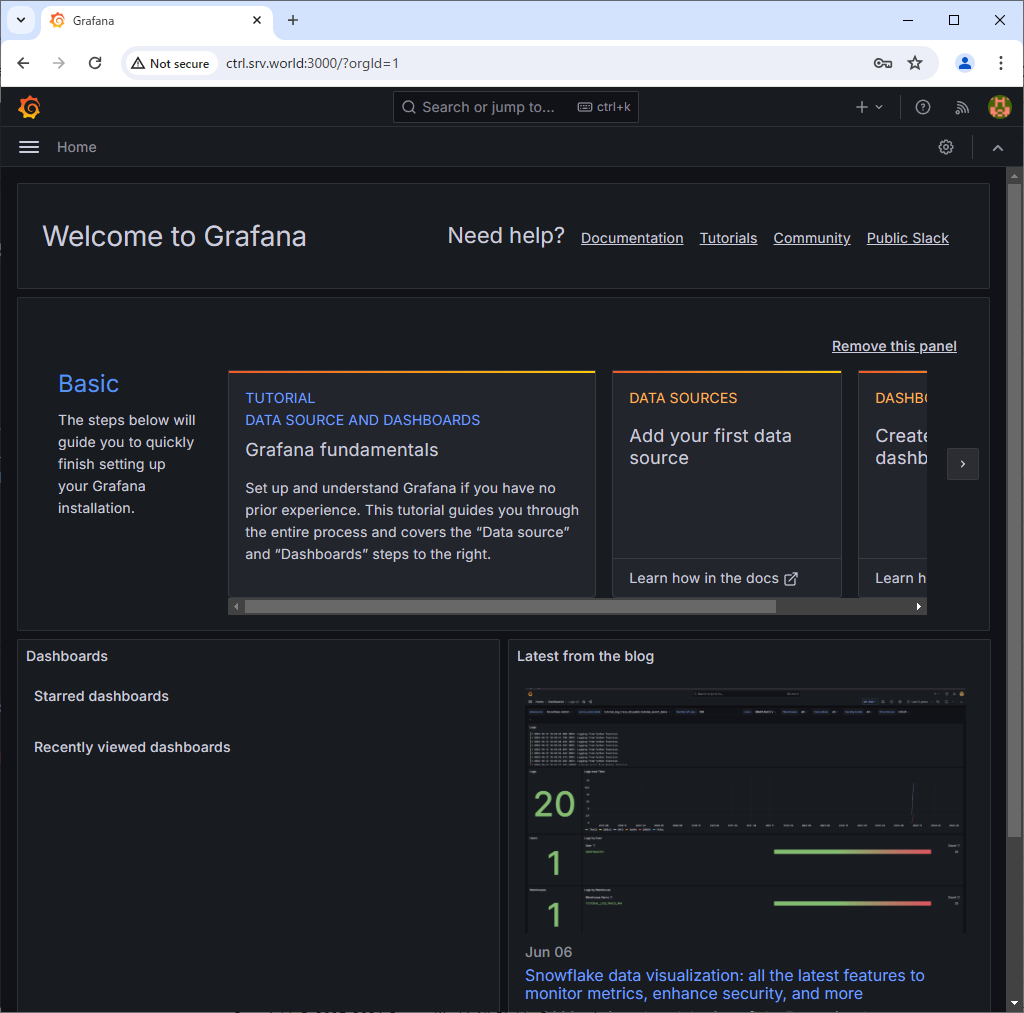

That's OK if following Grafana UI is displayed.

For [admin] password, it's possible to confirm with the command below.

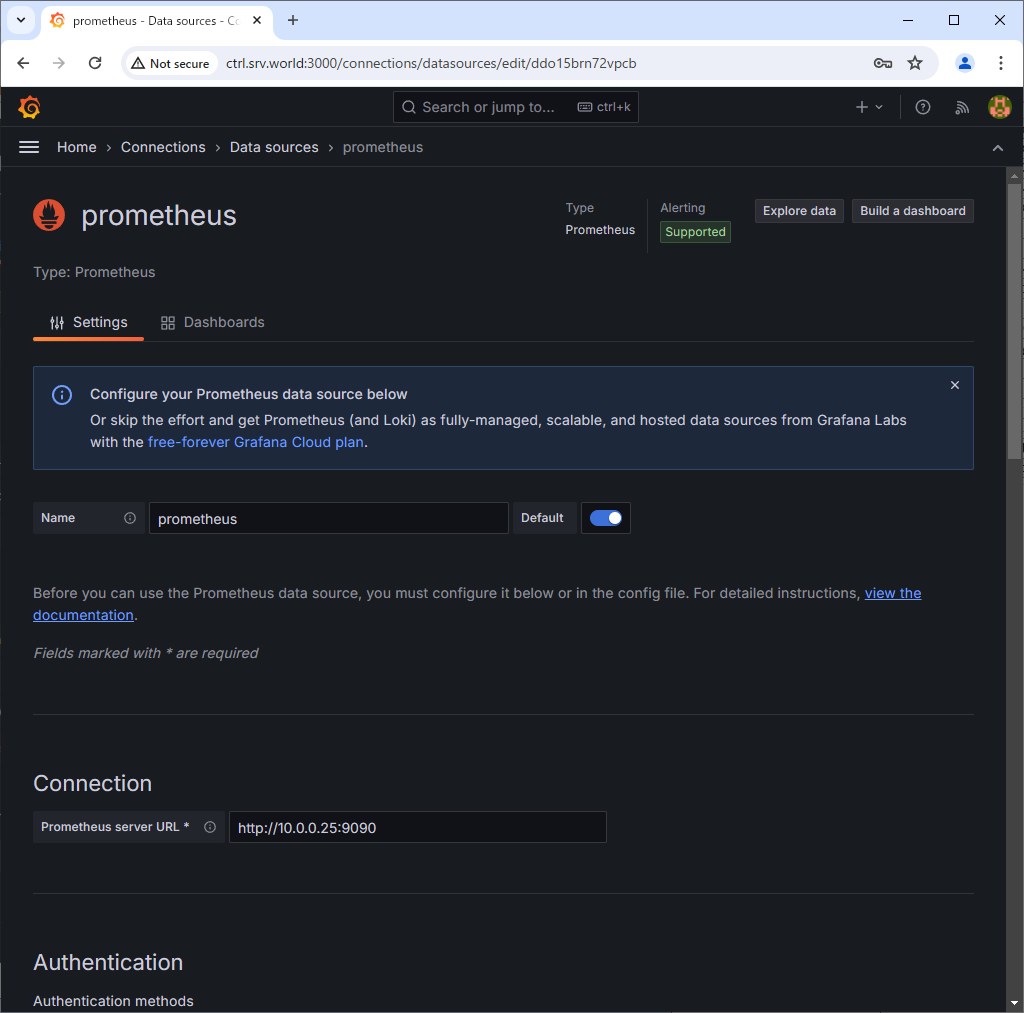

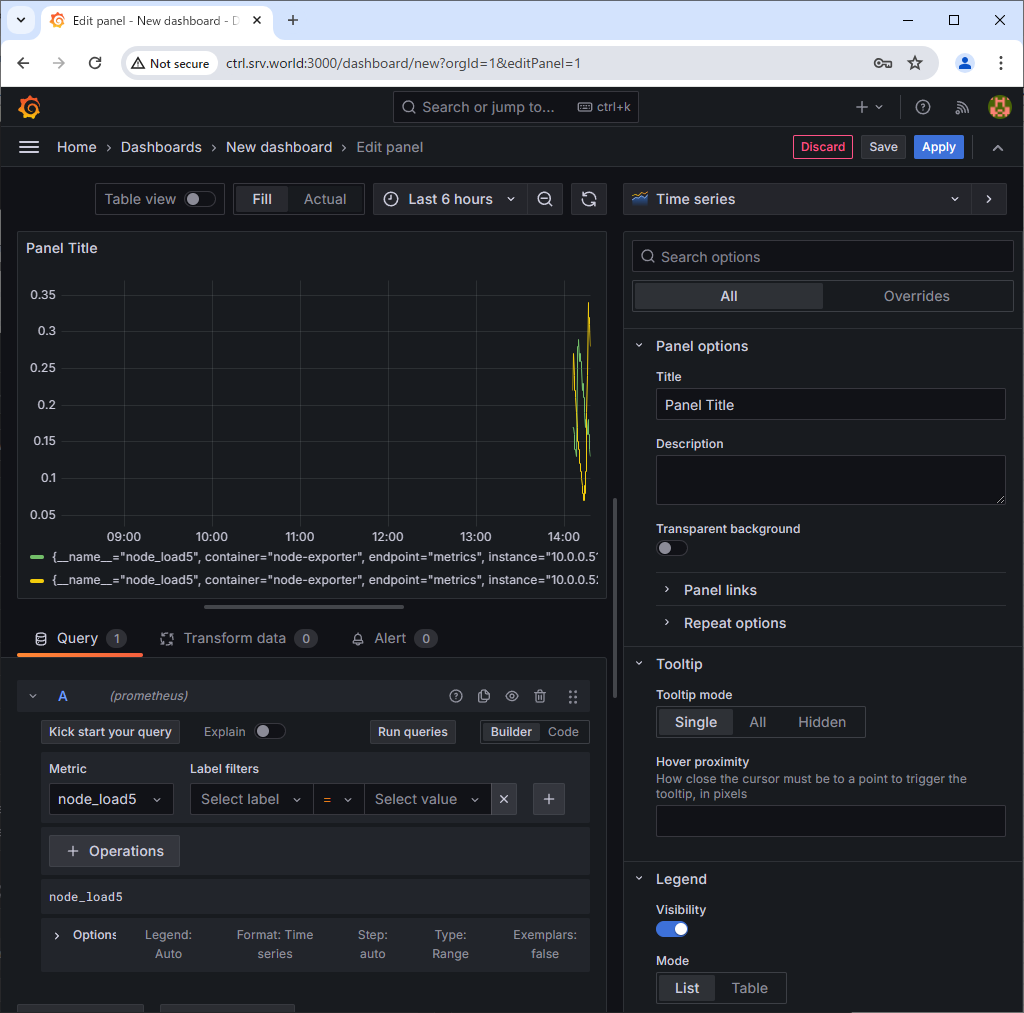

⇒ echo "Password: $(kubectl get secret grafana-admin --namespace monitoring -o jsonpath="{.data.GF_SECURITY_ADMIN_PASSWORD}" | base64 -d)"
