BIND : DNS over HTTPS Client Settings : Ubuntu2024/04/29

Configure Ubuntu Client to refer to your DNS over HTTPS Server.

[1]

Install dnscrypt-proxy.

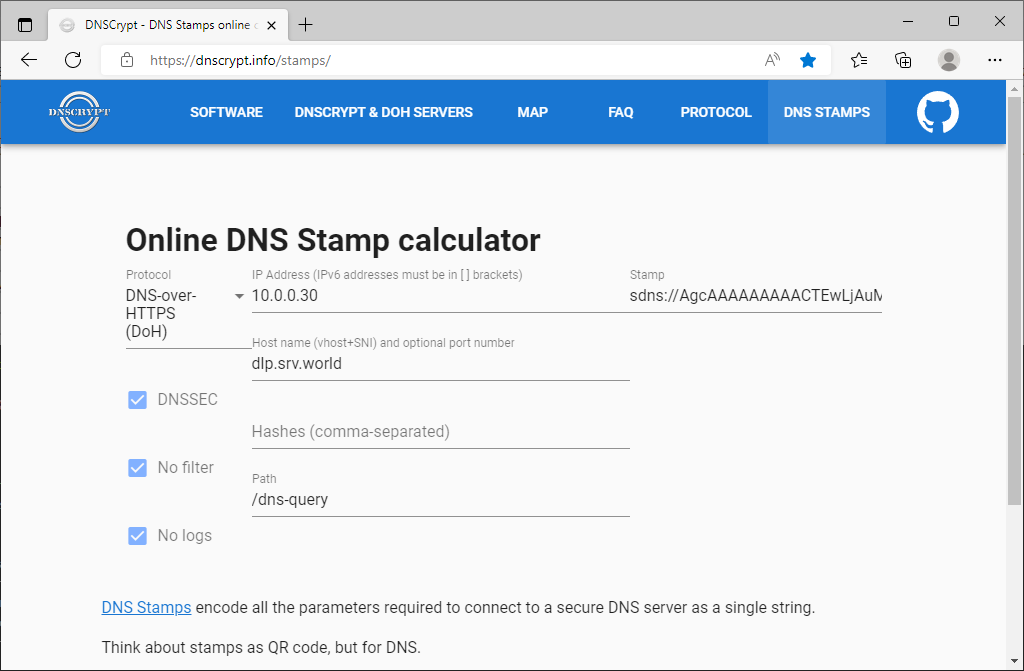

Before it, make sure the DNS Stamp on the following site, it needs on dnscrypt-proxy settings.

⇒ https://dnscrypt.info/stamps/

Select or Input like follows. Then note the value [sdns://***] on [Stamp] section.

* Protocol : DNS-over-HTTPS (DoH)
* IP Address : your DNS-over-HTTPS server's IP address
* Host Name : your DNS-over-HTTPS server's hostname
* Path : the value for [endpoints] that you set on your DNS-over-HTTPS server settings

[2]	Configure Ubuntu Client to refer to your DoH server.

root@node01:~#

apt -y install dnscrypt-proxy

root@node01:~#

vi /etc/dnscrypt-proxy/dnscrypt-proxy.toml

# Empty listen_addresses to use systemd socket activation
listen_addresses = []
# change to your DoH server
server_names = ['dlp.srv.world']

[query_log]
  file = '/var/log/dnscrypt-proxy/query.log'

[nx_log]
  file = '/var/log/dnscrypt-proxy/nx.log'

# comment out all
#[sources]
#  [sources.'public-resolvers']
#  url = 'https://download.dnscrypt.info/resolvers-list/v2/public-resolvers.md'
#  cache_file = '/var/cache/dnscrypt-proxy/public-resolvers.md'
#  minisign_key = 'RWQf6LRCGA9i53mlYecO4IzT51TGPpvWucNSCh1CBM0QTaLn73Y7GFO3'
#  refresh_delay = 72
#  prefix = ''

# add follows
# set the Stamp value on [stamp] section that you made sure on [1]
[static]
  [static.'dlp.srv.world']
  stamp = 'sdns://AgcAAAAAAAAACTEwLjAuMC4zMAANZGxwLnNydi53b3JsZAovZG5zLXF1ZXJ5'

root@node01:~#

systemctl restart dnscrypt-proxy

root@node01:~#

vi /etc/netplan/01-netcfg.yaml

# change to the IP address that dnscrypt-proxy listens

    nameservers:
        addresses: [127.0.2.1]

root@node01:~#

netplan apply

# verify resolution

root@node01:~#

dig www.srv.world.


; <<>> DiG 9.18.24-0ubuntu5-Ubuntu <<>> www.srv.world.
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 1245
;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 65494
;; QUESTION SECTION:
;www.srv.world.                 IN      A

;; ANSWER SECTION:
www.srv.world.          86399   IN      A       10.0.0.31

;; Query time: 3 msec
;; SERVER: 127.0.0.53#53(127.0.0.53) (UDP)
;; WHEN: Mon Apr 29 13:33:12 UTC 2024
;; MSG SIZE  rcvd: 58

BIND : DNS over HTTPS Client Settings : Windows

Configure Windows Client to refer to your DNS over HTTPS Server. This example is based on Windows 11.

[3]

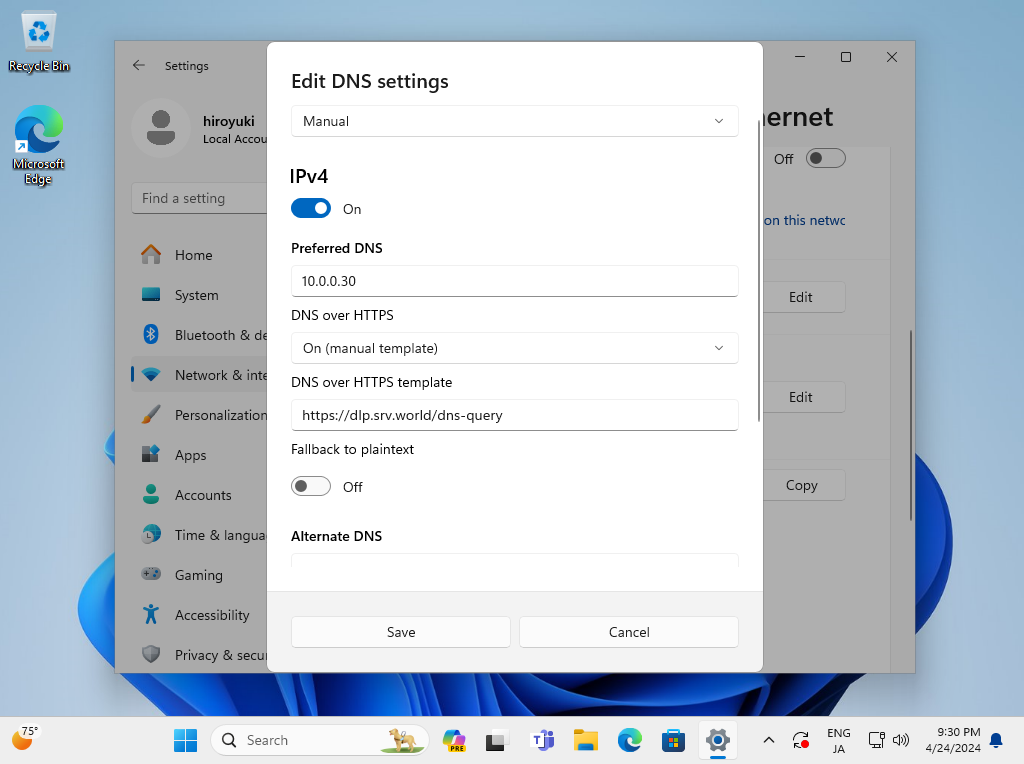

Open the Network setting and click the [Edit] button on [DNS server assignment] section. Next, Input your DoH Server address on the [Preferred DNS] section. For [DNS over HTTPS] section, select [On (manual template)] and For [DNS over HTTPS template] section, input the value of [endpoints] in named.conf you set.

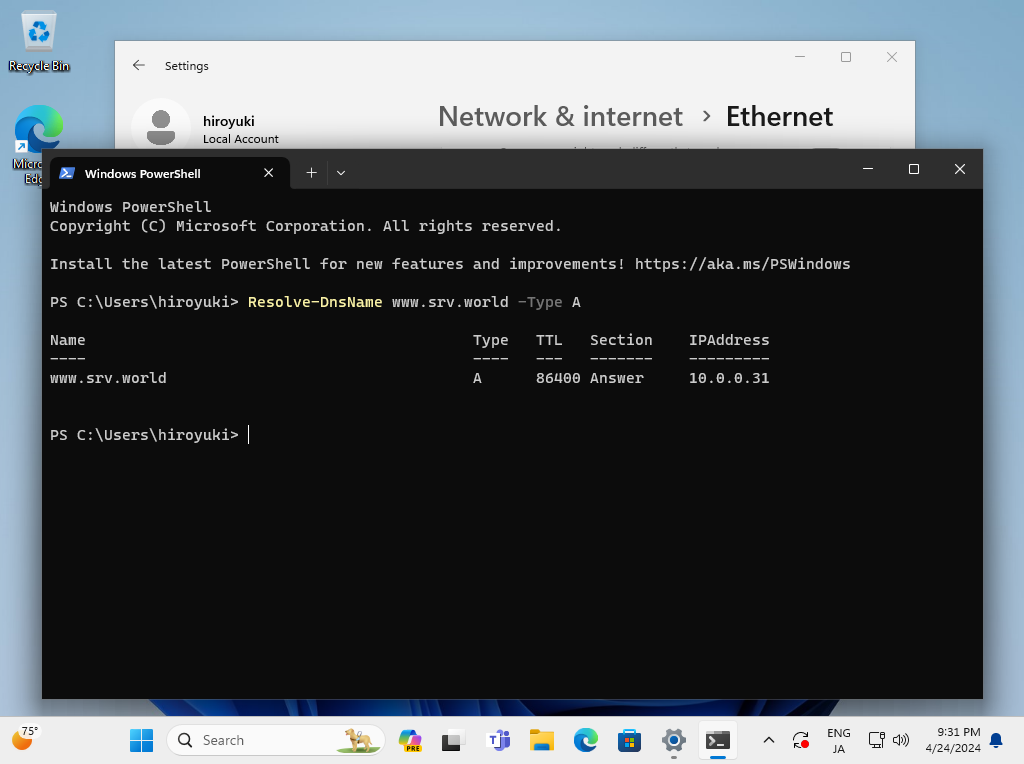

[4]	After setting your DoH server, verify Name and Address Resolution.
