Create a Limited directory
2011/05/04
  Create a shared directory that requires user authentication.

[1] Configure Samba
root@lan:~#
groupadd security

root@lan:~#
mkdir /home/security

root@lan:~#
chgrp security /home/security

root@lan:~#
chmod 2770 /home/security

root@lan:~#
vi /etc/samba/smb.conf


# line 103: change

security =
user


# add at the last line

[Security]
# any name you like

   path = /home/security
   writable = yes
   create mode = 0770
   directory mode = 0770
   share modes = yes
   guest ok = no
# guest not allowed

   valid users = @security
# allow only security group


root@lan:~#
smbpasswd -a narwhal
# add a user in Samba

New SMB password:
# set password

Retype new SMB password:
root@lan:~#
vi /etc/group


# add

security:x:1001:
narwhal


root@lan:~#
service smbd restart

smbd start/running, process 1279

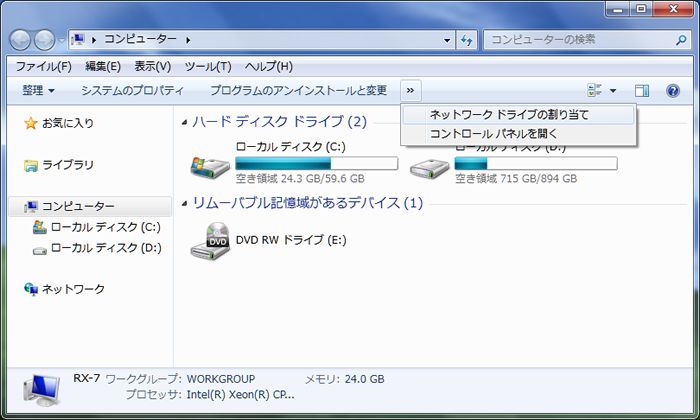

[2] Configure on Windows client. This example is on Windows 7. Select [My Computer] - [Map Network Drive] like following example.

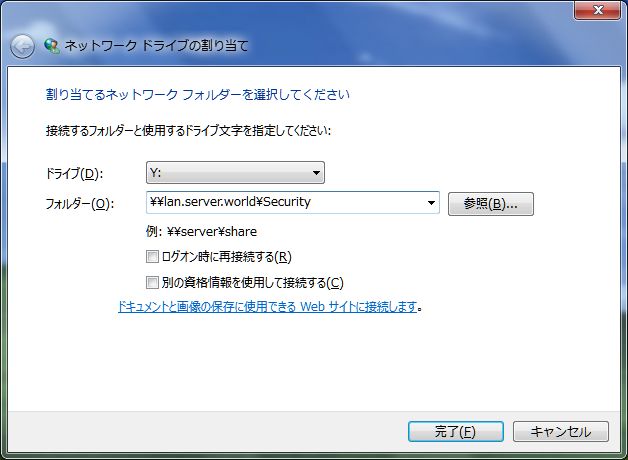

[3] Input '\\(your server)\(shared directory)'

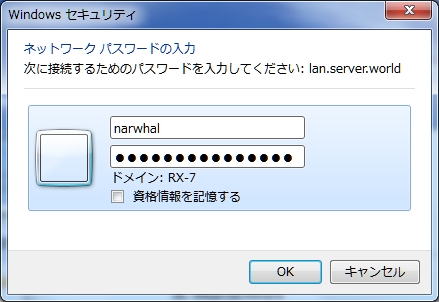

[4] Password is required. Input the one set in [1].

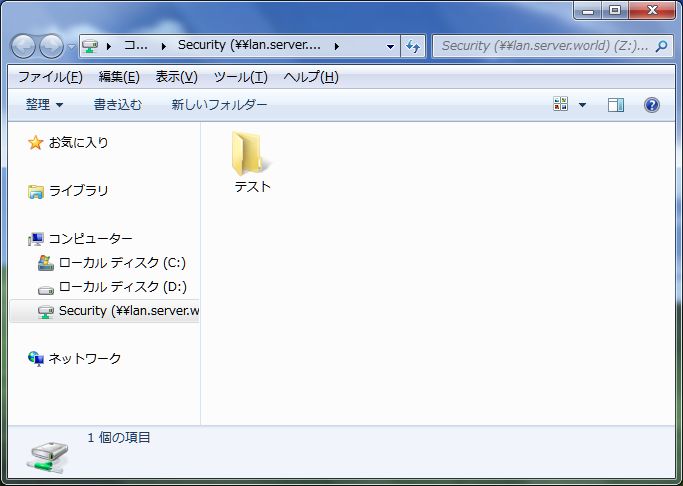

[5] Just accessed.
