Vsftpd Over SSL/TLS
2011/05/04
  Enable SSL/TLS on Vsftpd

[1] Configure for SSL/TLS
root@www:~#
cd /etc/ssl/private

root@www:/etc/ssl/private#
openssl req -x509 -nodes -newkey rsa:1024 -keyout /etc/ssl/private/vsftpd.pem -out /etc/ssl/private/vsftpd.pem

Generating a 1024 bit RSA private key
......++++++
.......++++++
writing new private key to '/etc/ssl/private/vsftpd.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:
JP
# country

State or Province Name (full name) [Some-State]:
Hiroshima

# state

Locality Name (eg, city) []:
Hiroshima
# city

Organization Name (eg, company) [Internet Widgits Pty Ltd]:
GTS

# company

Organizational Unit Name (eg, section) []:
Server World

# department

Common Name (eg, YOUR name) []:
www.srv.world

# server's FQDN

Email Address []:
xxx@srv.world
# email address


root@www:/etc/ssl/private#
chmod 400 vsftpd.pem

root@www:/etc/ssl/private#
vi /etc/vsftpd.conf


rsa_cert_file=/etc/ssl/private/vsftpd.pem
# line 145: add

ssl_enable=YES
# enable SSL

force_local_data_ssl=YES
# require SSL connection

force_local_logins_ssl=YES
# require SSL connection


root@www:/etc/ssl/private#
service vsftpd restart

vsftpd start/running, process 1050
[2] Configure on client PC. Use FileZilla that has a function of connecting trough SSL/TLS. Open [File]-[Site Manager] and input login info, and select 'TLS/SSL' in 'Server Type'.

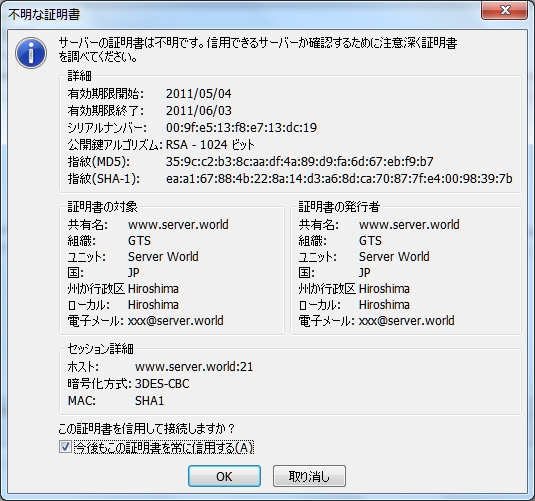

[3] Following waring is shown because certificate is own made one, but it's no ploblem. Go next.

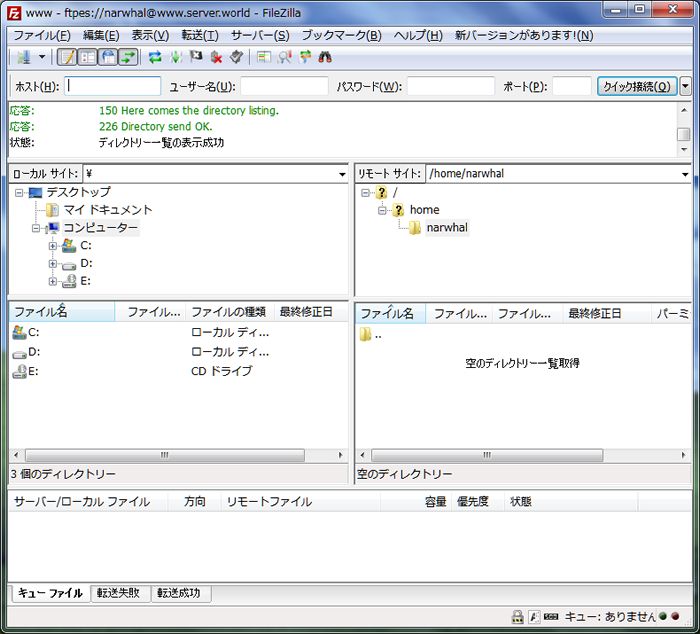

[4] Just connected
