Syncthing : Synchronize Files / Directories2026/02/04

Copy files or directories from one location to an another localtion by [Syncthing].

This example is based on the environment like follows.


+----------------------+          |          +----------------------+
|     dlp.srv.world    |10.0.0.30 | 10.0.0.51|   node01.srv.world   |
|                      +----------+----------+                      |
|                      |   <------------->   |                      |
+----------------------+        sync         +----------------------+

[1]	Install Syncthing on all hosts.

root@dlp:~ #

pkg install -y syncthing py311-bcrypt

[2]	Configure Syncthing on all hosts.

root@dlp:~ #

service syncthing enable

root@dlp:~ #

service syncthing start

root@dlp:~ #

service syncthing stop

# generate password

root@dlp:~ #

python3.11 -c 'import bcrypt, getpass; print(bcrypt.hashpw(getpass.getpass().encode(), bcrypt.gensalt()).decode())'

Password:
$2b$12$RXw/VJ1vBm.....

root@dlp:~ #

vi /usr/local/etc/syncthing/config.xml

    # line 13 : change like follows
    <gui enabled="true" tls="true" debugging="false" sendBasicAuthPrompt="false">
        # change to the address this server listens
        <address>10.0.0.30:8384</address>
        # set admin user (any name you like) and generated password
        <user>serverworld</user>
        <password>$2b$12$RXw/VJ1vBm.....</password>
        <apikey>cFdXMg.....</apikey>

        # line 55 : delete the line blow
        <unackedNotificationID>authenticationUserAndPassword</unackedNotificationID>

root@dlp:~ #

mkdir /var/Sync

root@dlp:~ #

chown syncthing:syncthing /var/Sync

root@dlp:~ #

service syncthing start

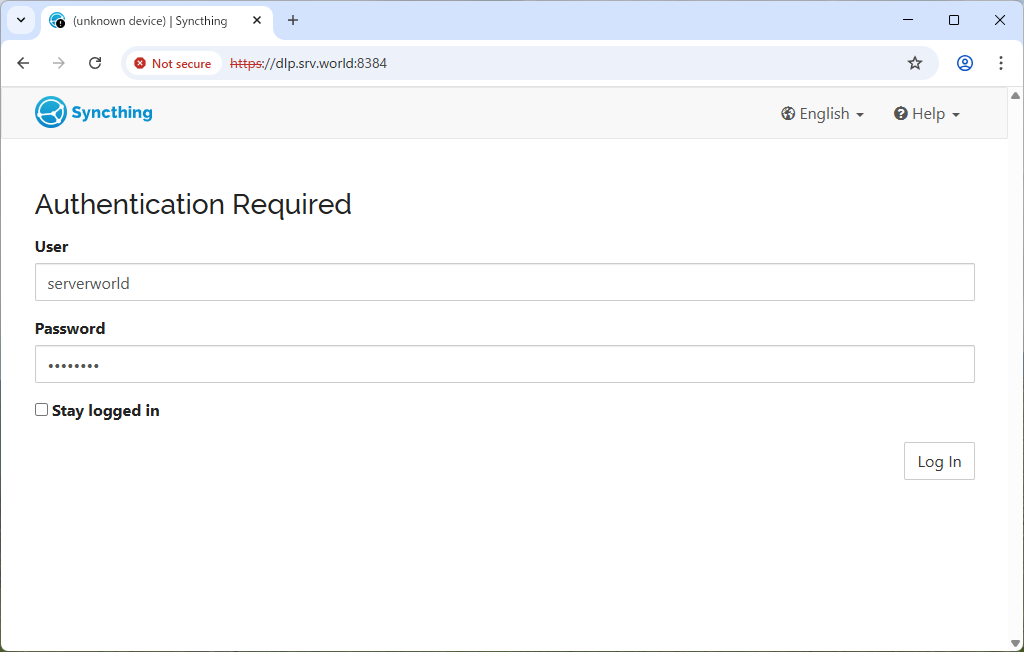

[3]	On any client computer, go to the configured address of one of your Syncthing hosts and log in with the admin user you configured.

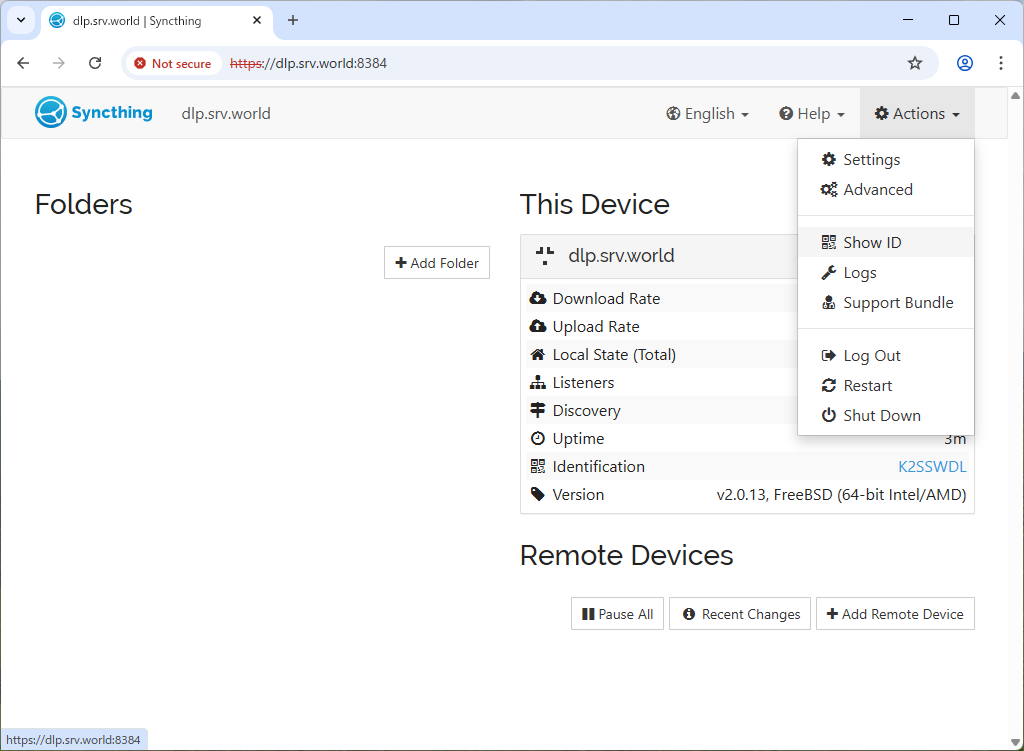

[4]	Click [Actions] - [Show ID].

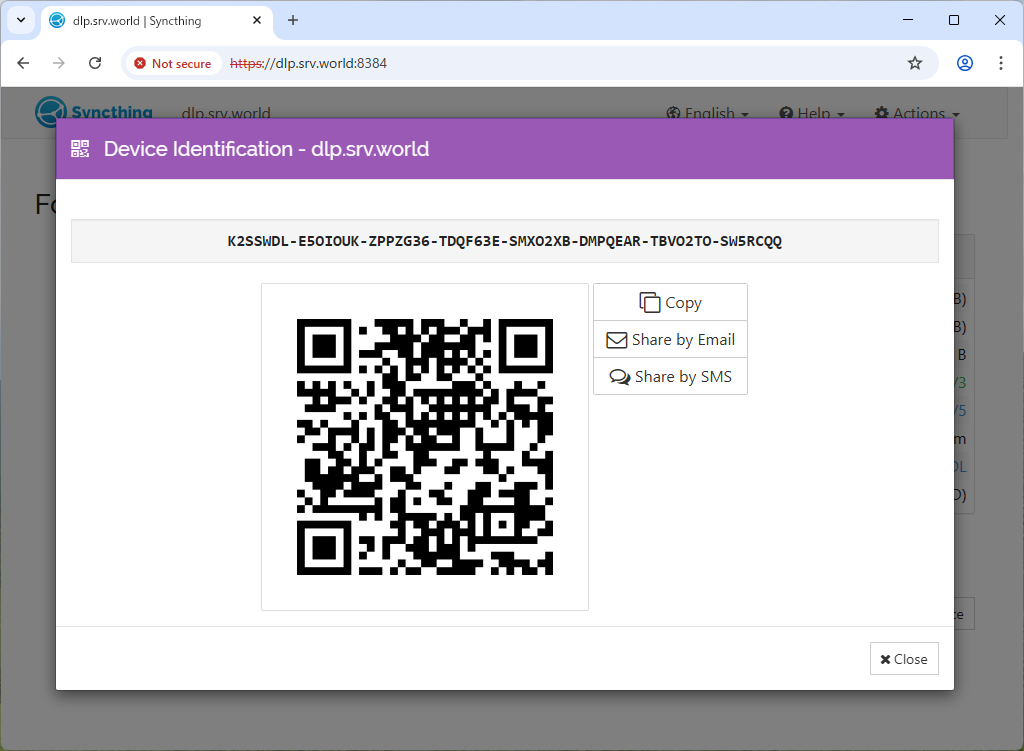

[5]	Copy the connection ID that is displayed.

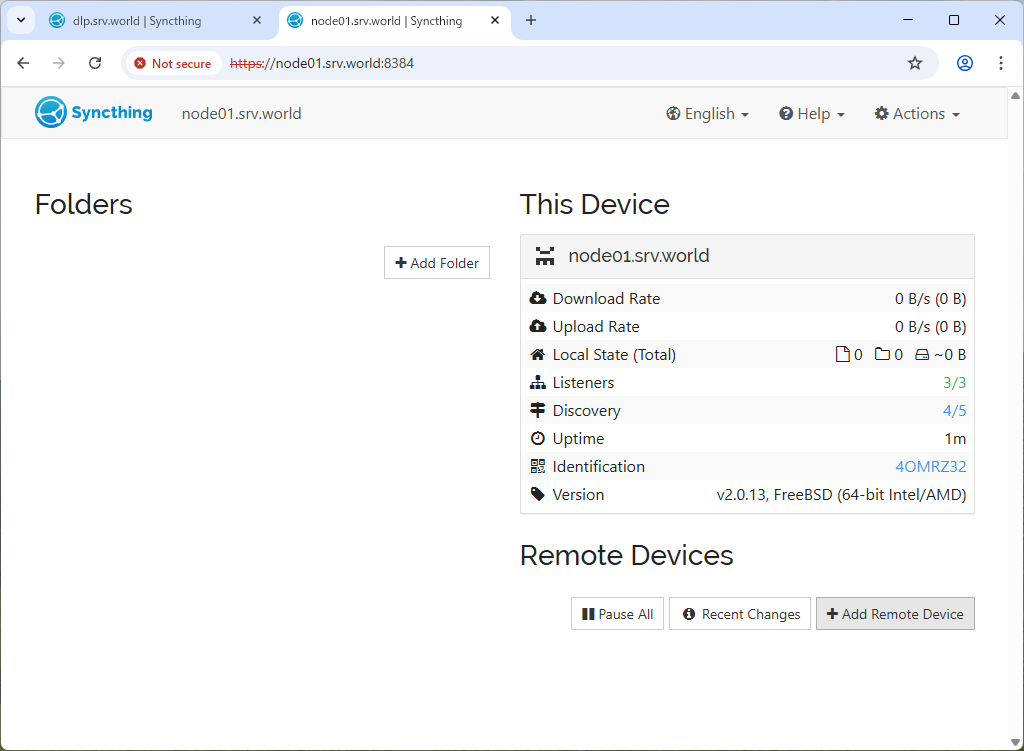

[6]	Log in to the other Syncthing host and click [Add Remote Device] in the bottom right.

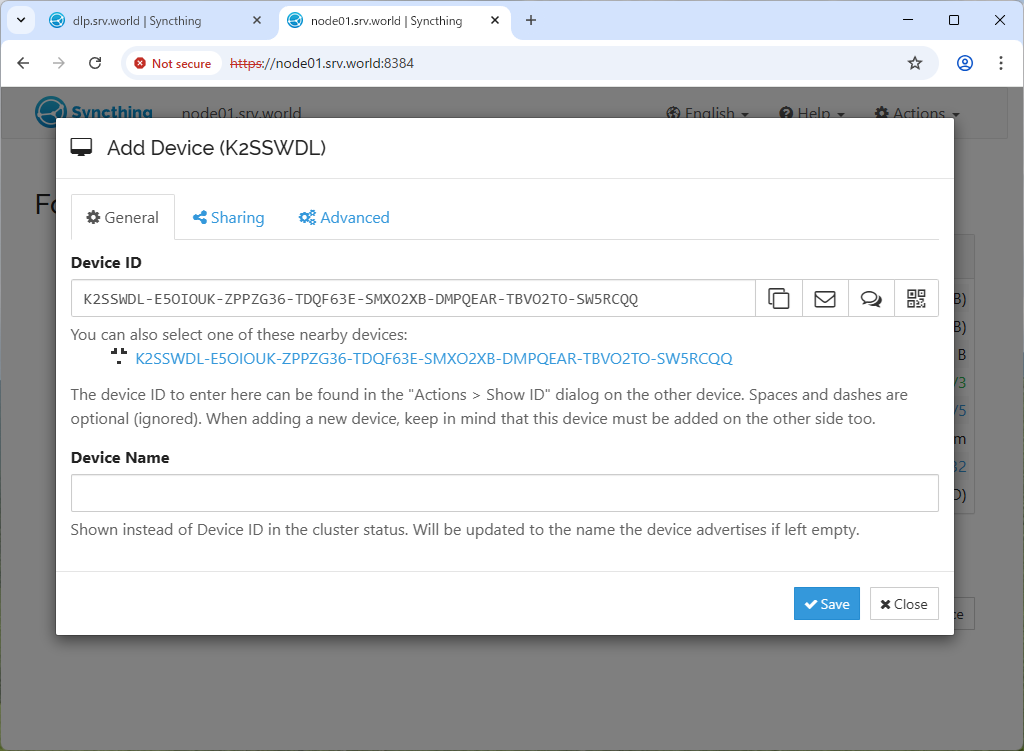

[7]	In the [Device ID] field, enter the connection ID displayed on the other host, and in the [Device Name] field, enter the name of the host to be synchronized (any name), and click the [Save] button.

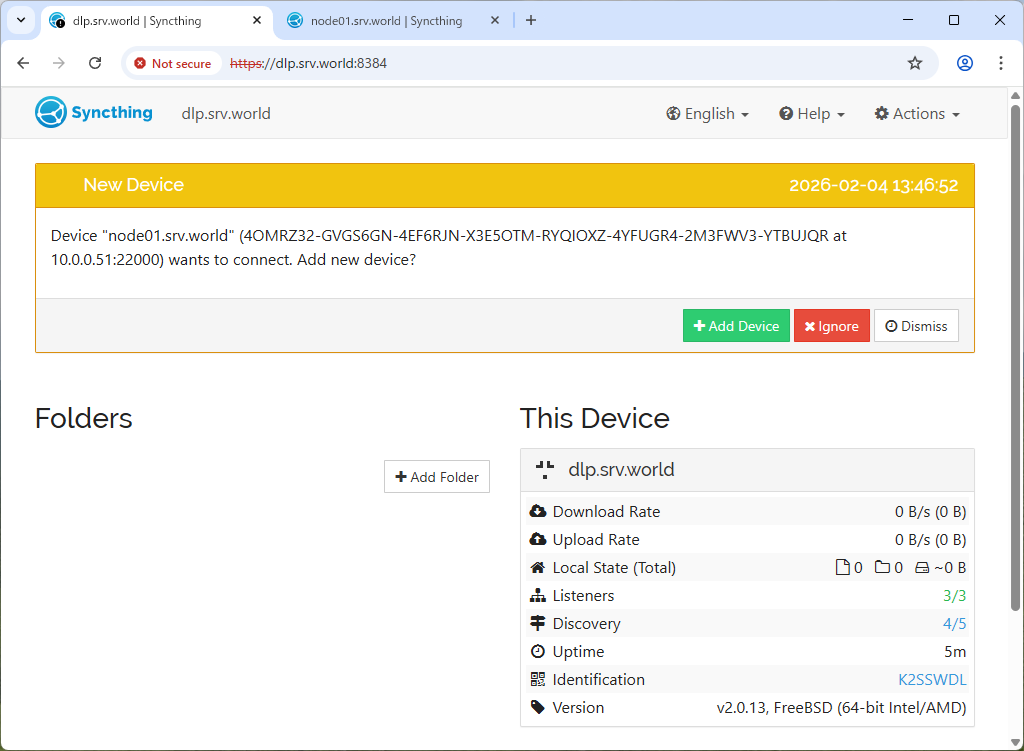

[8]	When you return to the host for which you confirmed the connection ID, a message will appear indicating that a connection request has been made. Click [Add Device] to add the host to which you want to connect.

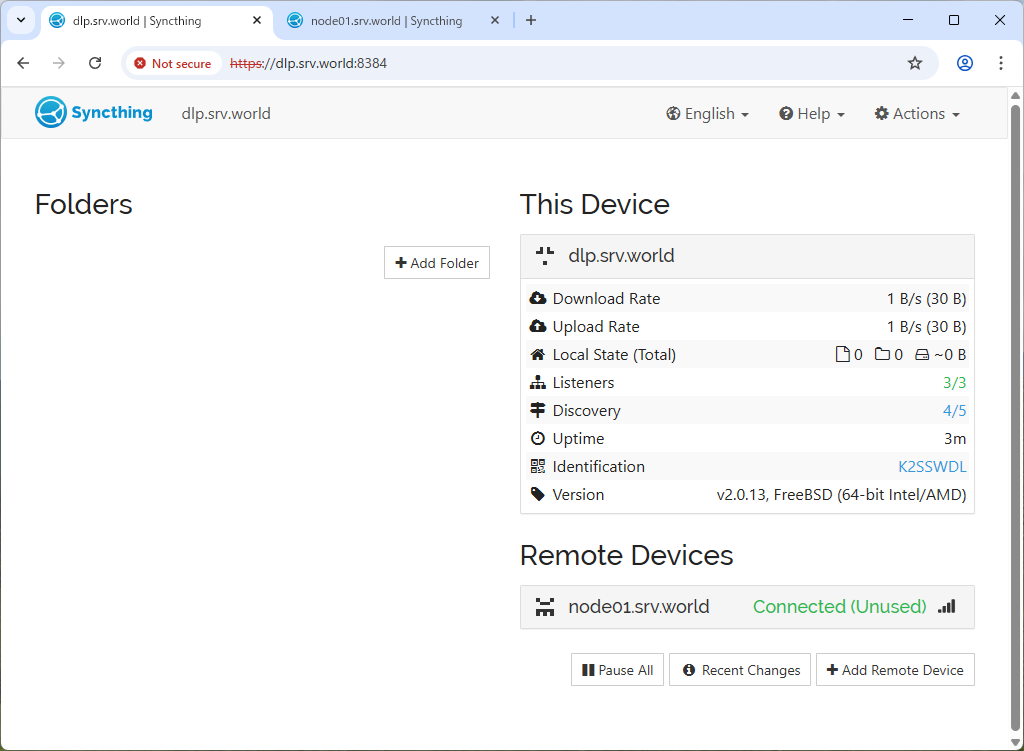

[9]	Click [Add Folder] to add a folder to sync.

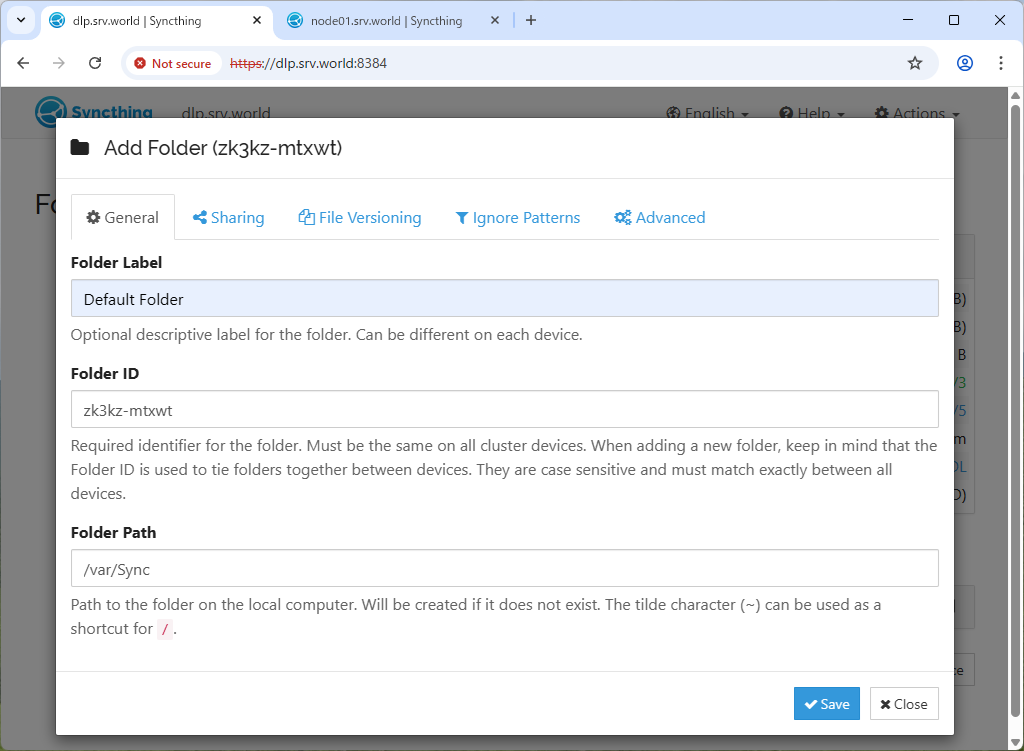

[10]	Enter the path and label of the folder you want to sync and go to the Sharing tab.

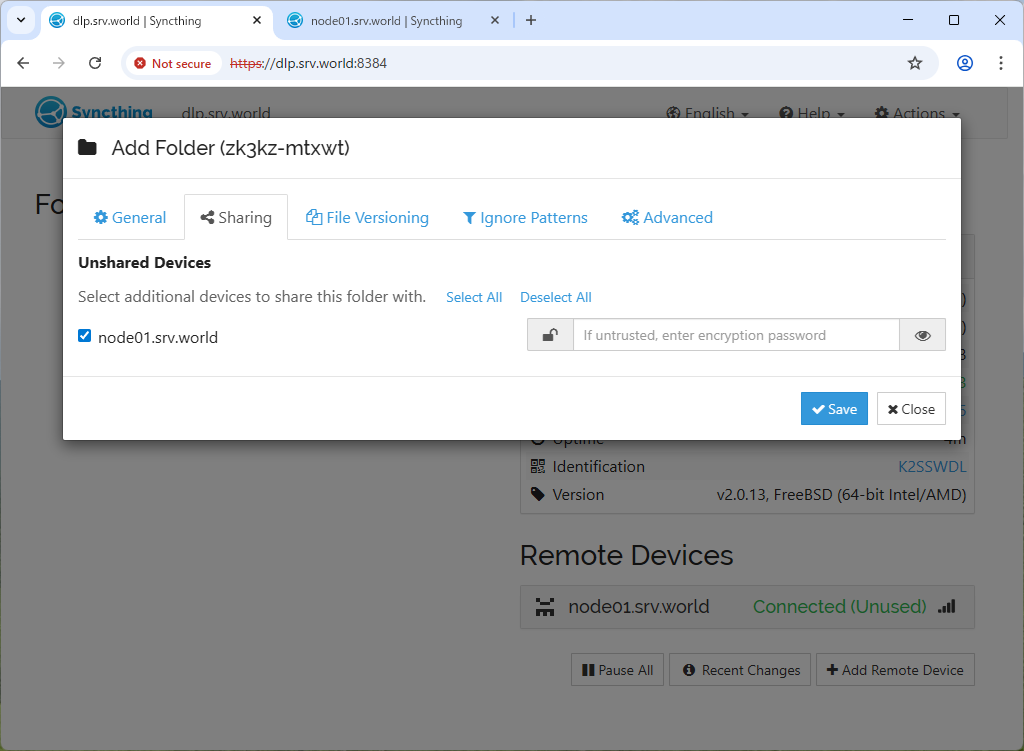

[11]	Check the hosts you want to synchronize and click [Save].

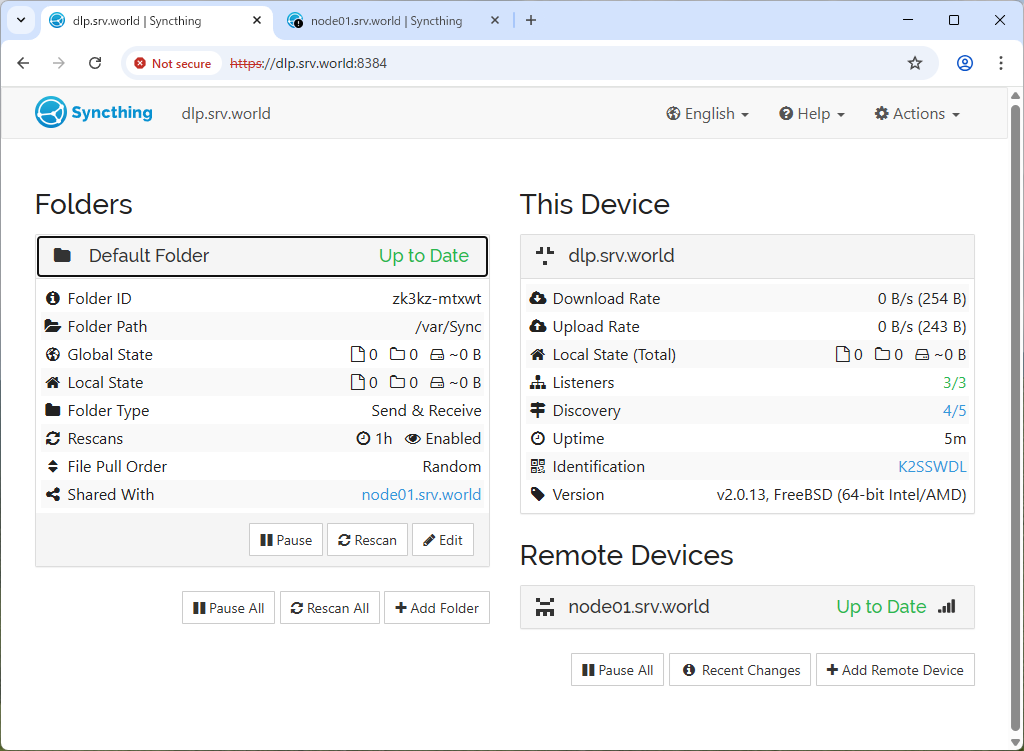

[12]	Now that the synchronization setup is complete, add or remove files on both hosts to verify that they are syncing properly.
