Vsftpd Over SSL/TLS2016/06/28


Enable SSL/TLS for Vsftpd to use secure FTP connections.
[1] Create certificates.
[root@www ~]#
cd /etc/pki/tls/certs

[root@www certs]#
openssl req -x509 -nodes -newkey rsa:2048 -keyout /etc/pki/tls/certs/vsftpd.pem -out /etc/pki/tls/certs/vsftpd.pem

Generating a 2048 bit RSA private key
......++++++
.......++++++
writing new private key to '/etc/pki/tls/certs/vsftpd.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:
JP

# country

State or Province Name (full name) [Some-State]:
Hiroshima

# state

Locality Name (eg, city) []:
Hiroshima

# city

Organization Name (eg, company) [Internet Widgits Pty Ltd]:
GTS

# company

Organizational Unit Name (eg, section) []:
Server World

# department

Common Name (eg, YOUR name) []:
www.srv.world

# server's FQDN

Email Address []:
xxx@srv.world

# admin email
[root@www certs]#
chmod 400 vsftpd.pem

[2] Configure Vsftpd. Configure basic settings before it, refer to here.
[root@www ~]#
vi /etc/vsftpd/vsftpd.conf
# add to the end

# fix PASV ports

pasv_enable=YES
pasv_min_port=21000
pasv_max_port=21010
# enable SSL/TLS

rsa_cert_file=/etc/pki/tls/certs/vsftpd.pem
ssl_enable=YES
force_local_data_ssl=YES
force_local_logins_ssl=YES
[root@www ~]#
systemctl restart vsftpd

[3] If Firewalld is running, allow PASV ports.
[root@www ~]#
firewall-cmd --add-port=21000-21010/tcp --permanent

success
[root@www ~]#
firewall-cmd --reload

success
FTP Client : Fedora

Configure FTP Client to use FTPS connection.
[4] Install FTP Client and configure like follows.
[redhat@dlp ~]$
vi ~/.lftprc
# create new

set ftp:ssl-auth TLS
set ftp:ssl-force true
set ftp:ssl-protect-list yes
set ftp:ssl-protect-data yes
set ftp:ssl-protect-fxp yes
set ssl:verify-certificate no
[redhat@dlp ~]$
lftp -u fedora www.srv.world

Password:
lftp fedora@www.srv.world:~>
FTP Client : Windows
[5] For example of FileZilla on Windows, Open 'File'-'Site Manager'.
[6] Input user info like follows, for encryption field, select "explicit FTP over TLS".
[7] The user's Password is required. Input it.
[8] The following waring is shown because the certificate is own created, it's no ploblem. Go next.

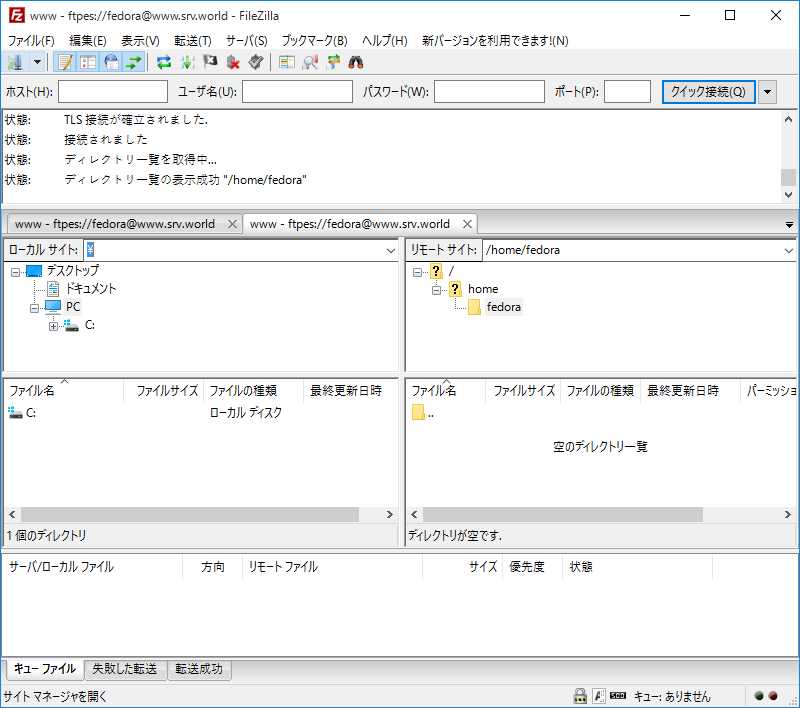

[9] Just connected with FTPS.
