SSH Keys Authentication2014/12/10


Configure SSH server to login with Keys Authentication. Create a private key for client and a public key for server to do it.
[1] Create key pair for each user, so login with a common user and work it like follows.
# create key pair

[fedora@dlp ~]$
ssh-keygen -t rsa

Generating public/private rsa key pair.
Enter file in which to save the key (/home/fedora/.ssh/id_rsa):
# Enter

Created directory '/home/fedora/.ssh'.
Enter passphrase (empty for no passphrase):
# set passphrase (set no passphrase to Enter with empty)

Enter same passphrase again:
Your identification has been saved in /home/fedora/.ssh/id_rsa.
Your public key has been saved in /home/fedora/.ssh/id_rsa.pub.
The key fingerprint is:
38:f1:b4:6d:d3:0e:59:c8:fa:1d:1d:48:86:f0:fe:74 fedora@dlp.srv.world
The key's randomart image is:

[fedora@dlp ~]$
mv ~/.ssh/id_rsa.pub ~/.ssh/authorized_keys

[fedora@dlp ~]$
chmod 600 ~/.ssh/authorized_keys

[2] Transfer the secret key created on the Server to a Client, then it's possbile to login with keys authentication.
[fedora@www ~]$
mkdir ~/.ssh

[fedora@www ~]$
chmod 700 ~/.ssh
# copy the secret key to local ssh directory

[fedora@www ~]$
scp fedora@10.0.0.30:/home/fedora/.ssh/id_rsa ~/.ssh/

fedora@10.0.0.30's password:
id_rsa
[fedora@www ~]$
ssh -i ~/.ssh/id_rsa fedora@10.0.0.30

Enter passphrase for key '/home/fedora/.ssh/id_rsa':
# passphrase

Last login: Wed Dec 10 22:23:46 2014 from www.srv.world
[fedora@dlp ~]$
# just logined

[3] If you set "PasswordAuthentication" no, it's more secure.
[root@dlp ~]#
vi /etc/ssh/sshd_config
# line 79: turn to "no"

PasswordAuthentication
no
[root@dlp ~]#
systemctl restart sshd

SSH Keys Auth from Windows Client

It's the example to login to SSH server from Windows Client. It uses Putty on here. Transfer a secret key to Windows Client first.

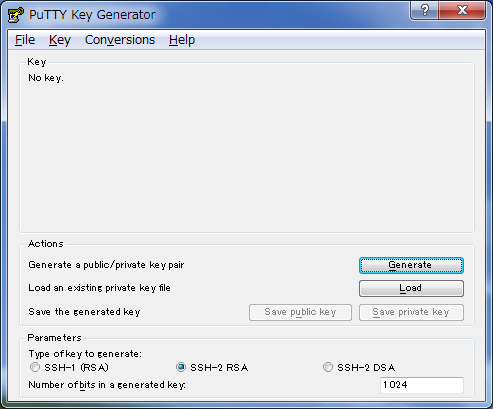

[4] Download "Puttygen.exe" from Putty Site and save it under the Putty directory. Next execute it and click "Load" button.

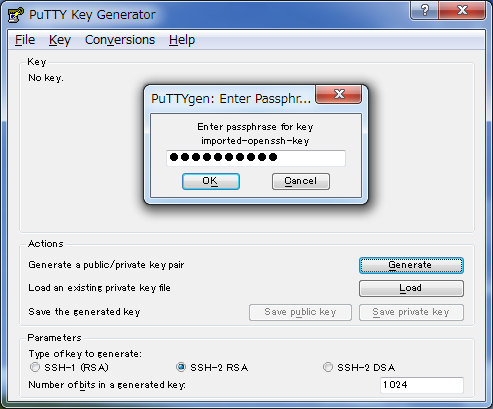

[5] Specify the secret key which you downloaded, then passphrase is required like follows, answer it.

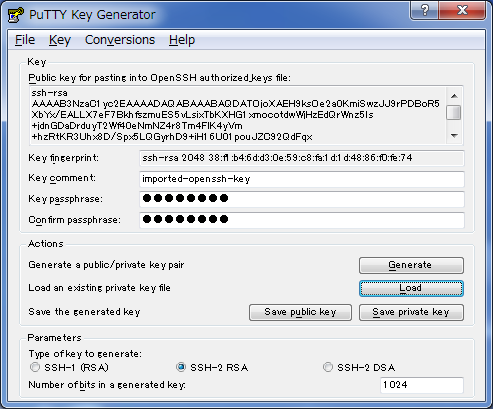

[6] Click "Save private key" button to save it under a folder you like with any file name you like.

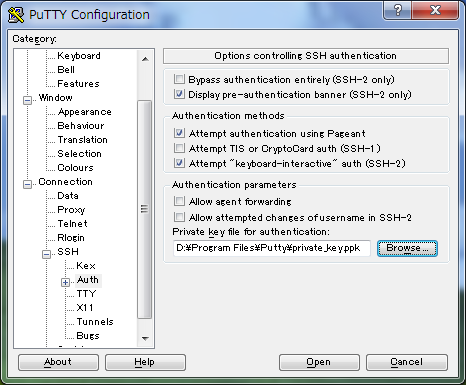

[7] Start Putty and open [Connection]-[SSH]-[Auth] on the left menu, then select the "private_key" which was just saved above.

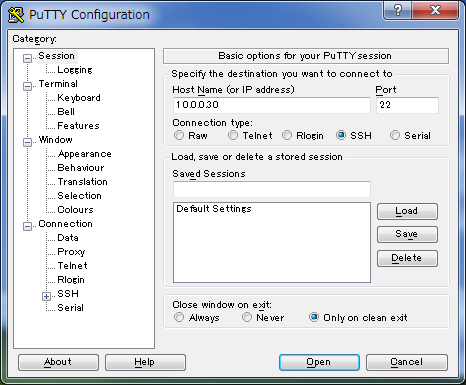

[8] Back to the [Session] on the left menu and connect to the SSH server.

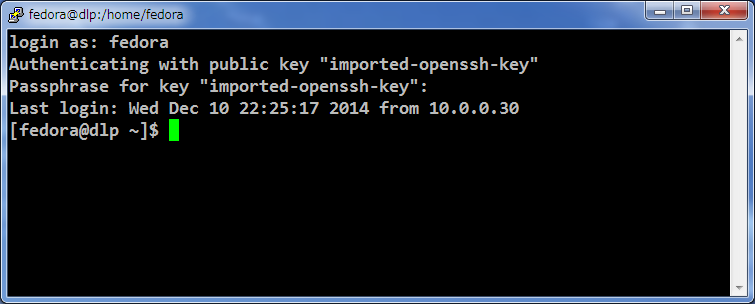

[9] The passphrase is required to input, then answer it. If it's correct passphrase, it's possible to login normally like follows.
