Vsftpd Over SSL/TLS2011/11/12


Enable SSL/TLS on Vsftpd.
[1] Configure for SSL/TLS
[root@www ~]#
cd /etc/pki/tls/certs

[root@www certs]#
openssl req -x509 -nodes -newkey rsa:1024 -keyout /etc/pki/tls/certs/vsftpd.pem -out /etc/pki/tls/certs/vsftpd.pem

Generating a 1024 bit RSA private key
......++++++
.......++++++
writing new private key to '/etc/pki/tls/certs/vsftpd.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:
JP
# country

State or Province Name (full name) [Some-State]:
Hiroshima

# state

Locality Name (eg, city) []:
Hiroshima
# city

Organization Name (eg, company) [Internet Widgits Pty Ltd]:
GTS

# company

Organizational Unit Name (eg, section) []:
Server World

# department

Common Name (eg, YOUR name) []:
www.srv.world

# server's FQDN

Email Address []:
xxx@srv.world
# email address
[root@www certs]#
chmod 600 vsftpd.pem

[root@www certs]#
vi /etc/vsftpd/vsftpd.conf
# add at the last line

rsa_cert_file=/etc/pki/tls/certs/vsftpd.pem
ssl_enable=YES
# enable SSL

force_local_data_ssl=YES
# require SSL connection

force_local_logins_ssl=YES
# require SSL connection
[root@www certs]#
systemctl restart vsftpd@vsftpd.service

[2] Configure on client PC. Use FileZilla that has a function of connecting trough SSL/TLS. Open 'File'-'Site Manager' and input login info, and select 'TLS/SSL' in 'Server Type'.

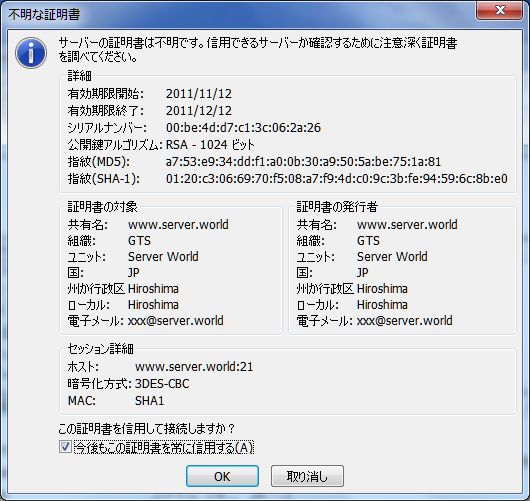

[3] Following waring is shown because certificate is originally created, but it's no ploblem. Go next.

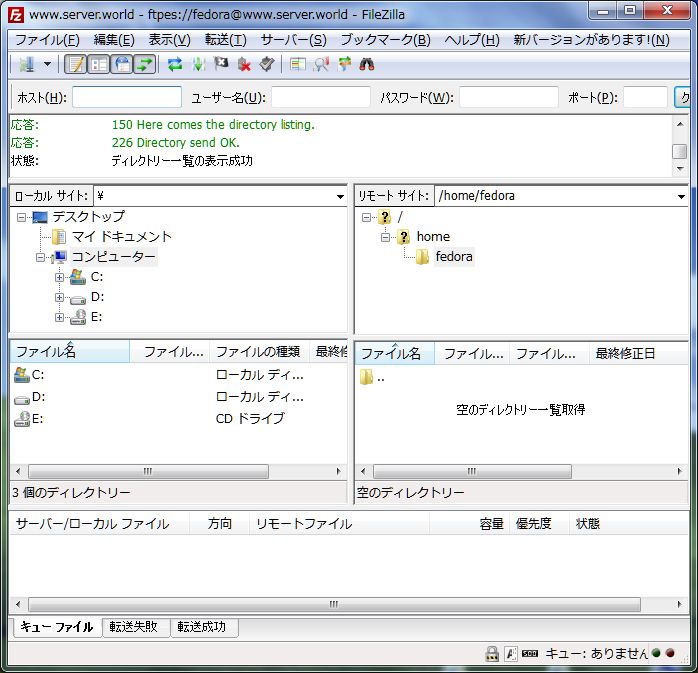

[4] Just connected.
