Configure SSL2008/11/30 |
| Configure SSL |
|
[root@www ~]# cd /etc/pki/tls/certs [root@www certs]# make server.key umask 77 ; \ /usr/bin/openssl genrsa -des3 1024 > server.key Generating RSA private key, 1024 bit long modulus ......................................................++++++ .............++++++ e is 65537 (0x10001) Enter pass phrase: # set passphrase Verifying - Enter pass phrase: # confirm [root@www certs]# # remove passphrase from private key [root@www certs]# openssl rsa -in server.key -out server.key Enter pass phrase for server.key: # input passphrase writing RSA key [root@www certs]# [root@www certs]# make server.csr umask 77 ; \ /usr/bin/openssl req -utf8 -new -key server.key -out server.csr You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank. ----- Country Name (2 letter code) [GB]: JP # country State or Province Name (full name) [Berkshire]: Hiroshima # state Locality Name (eg, city) [Newbury]: Hiroshima # city Organization Name (eg, company) [My Company Ltd]: Server Linux # company Organizational Unit Name (eg, section) []: IT Solution # department Common Name (eg, your server's hostname) []: www.srv.world # server's FQDN Email Address []: root@srv.world # email address Please enter the following 'extra' attributes to be sent with your certificate request A challenge password []: # Enter An optional company name []: # Enter [root@www certs]# [root@www certs]# openssl x509 -in server.csr -out server.crt -req -signkey server.key -days 3650 Signature ok subject=/C=JP/ST=Hiroshima/L=Hiroshima/O=Server Linux/OU=IT Solution/CN=www.srv.world/emailAddress=root@srv.world Getting Private key [root@www certs]# chmod 400 server.* [root@www certs]# [root@www certs]# vi /etc/httpd/conf.d/ssl.conf # line 78: uncomment DocumentRoot "/var/www/html" # line 79: uncomment and change ServerName www.srv.world:443 # line 106: change SSLCertificateFile /etc/pki/tls/certs/server.crt # line 113: change SSLCertificateKeyFile /etc/pki/tls/certs/server.key [root@www certs]# /etc/rc.d/init.d/httpd restart Stopping httpd: [ OK ] Starting httpd: [ OK ] |

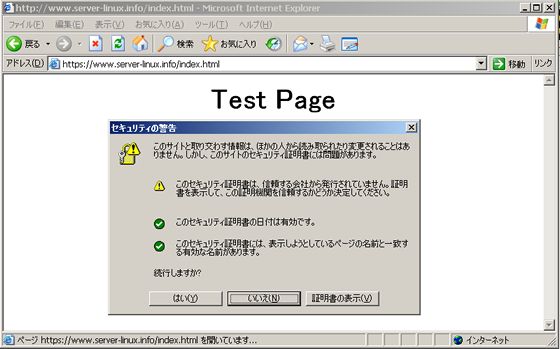

| Access to the test page with https. Following window is shown because Certification File is not installed in browser. It's no ploblem. Click Yes to proceed. | |
|

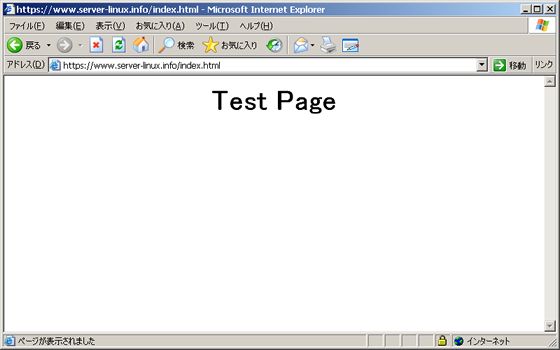

| Just accessed. | |
|
