Prometheus : Visualize on Grafana2025/09/26


Web UI is included in Prometheus but it's also possible to visualize time series data on Grafana.

[1]

Install Grafana, refer to here.
It's OK to install it on any Node. (install it on Prometheus server Node on this example)

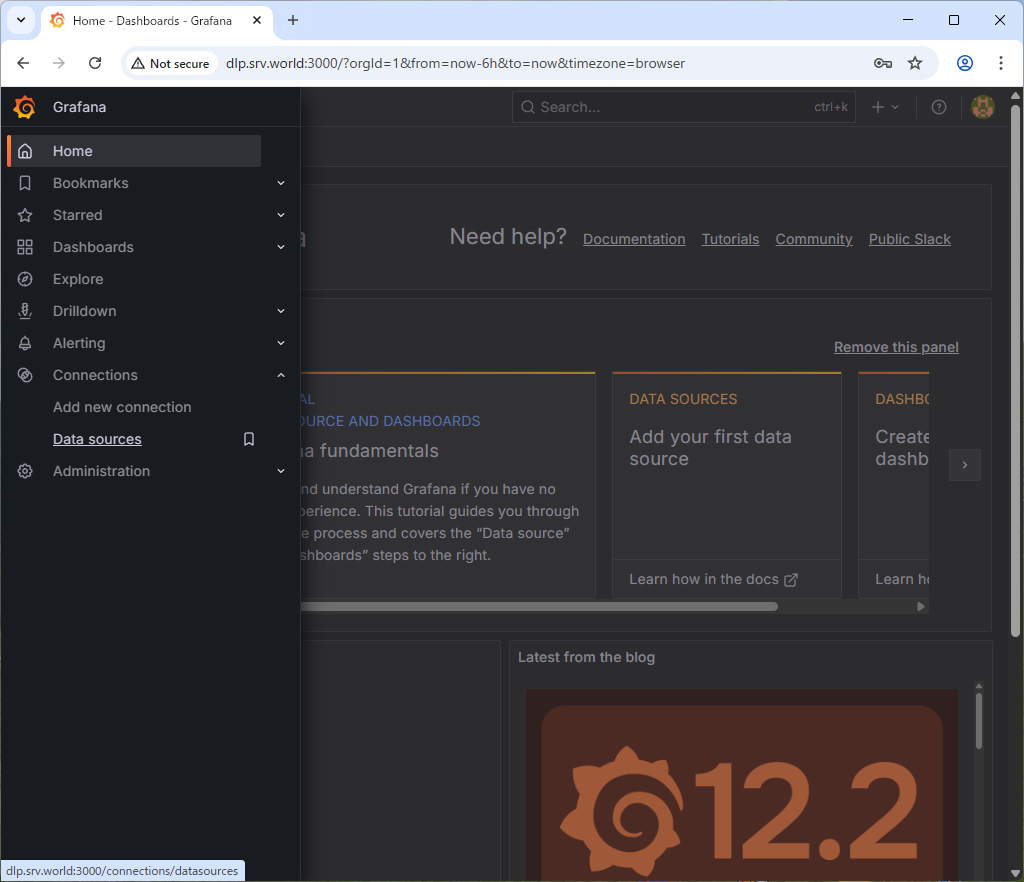

[2] Access to Grafana Dashboard and Open [Connections] - [Data Sources] on the left menu.

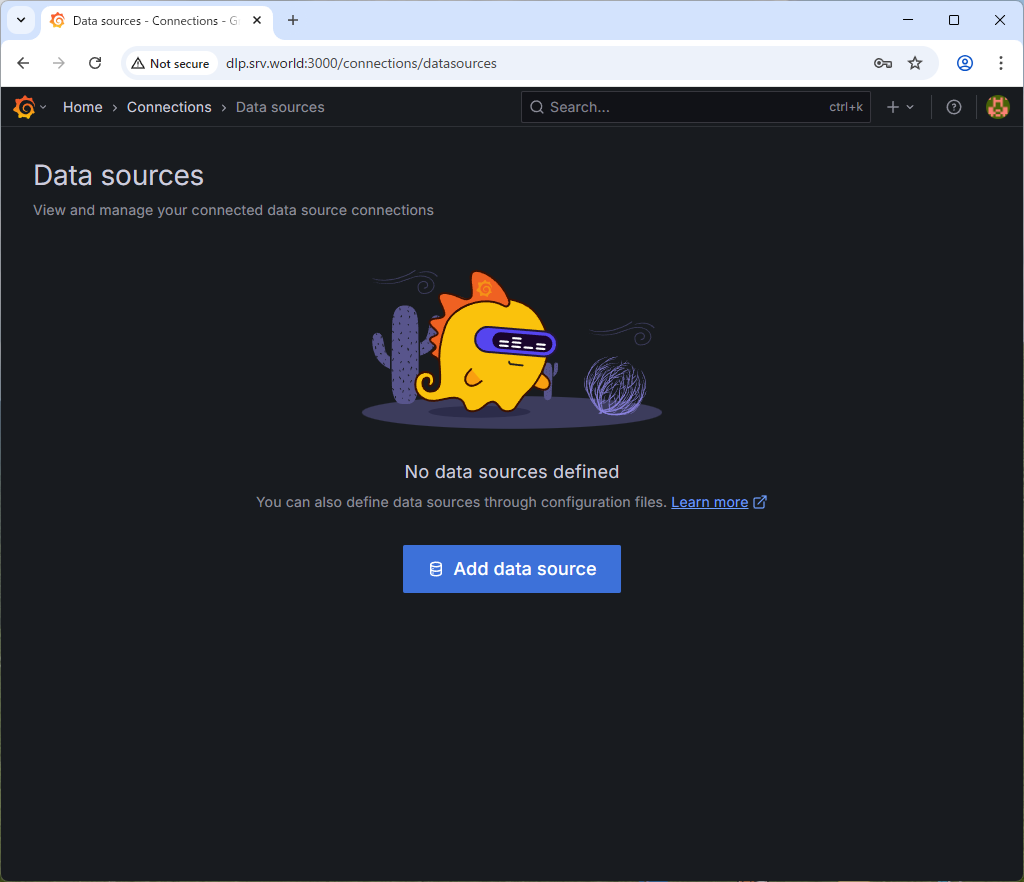

[3] Click [Add data source].

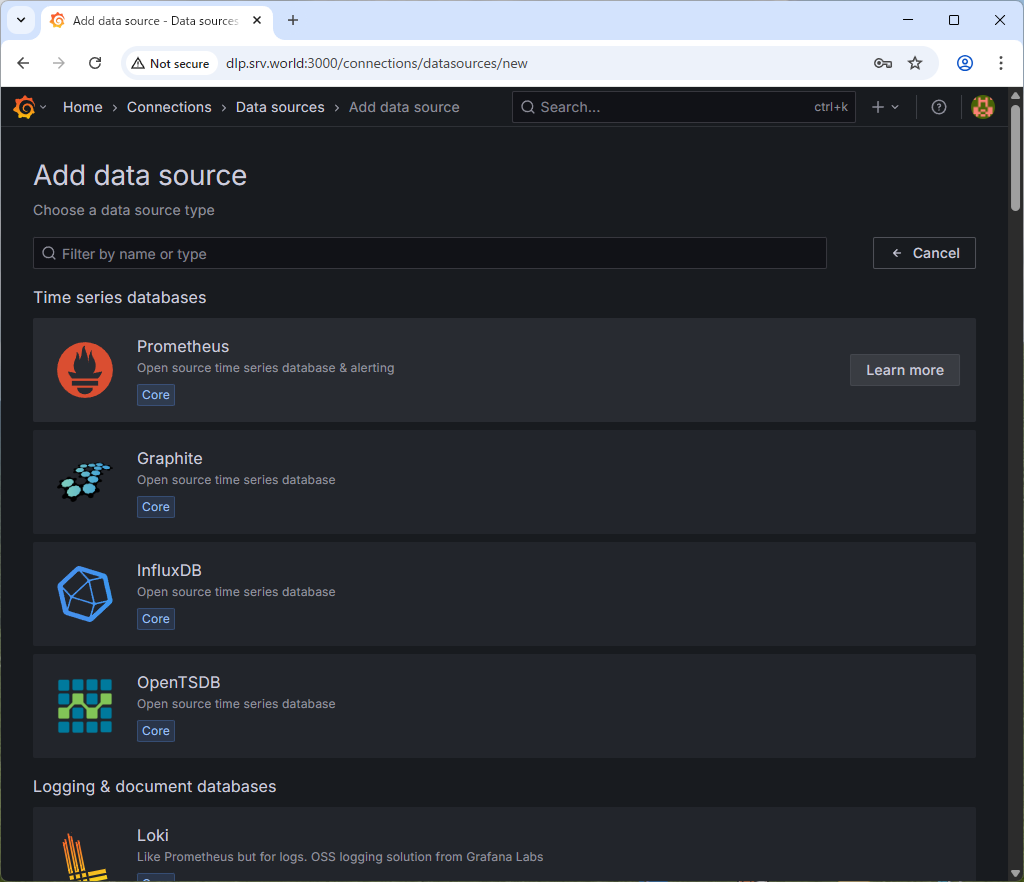

[4] Click [Prometheus].

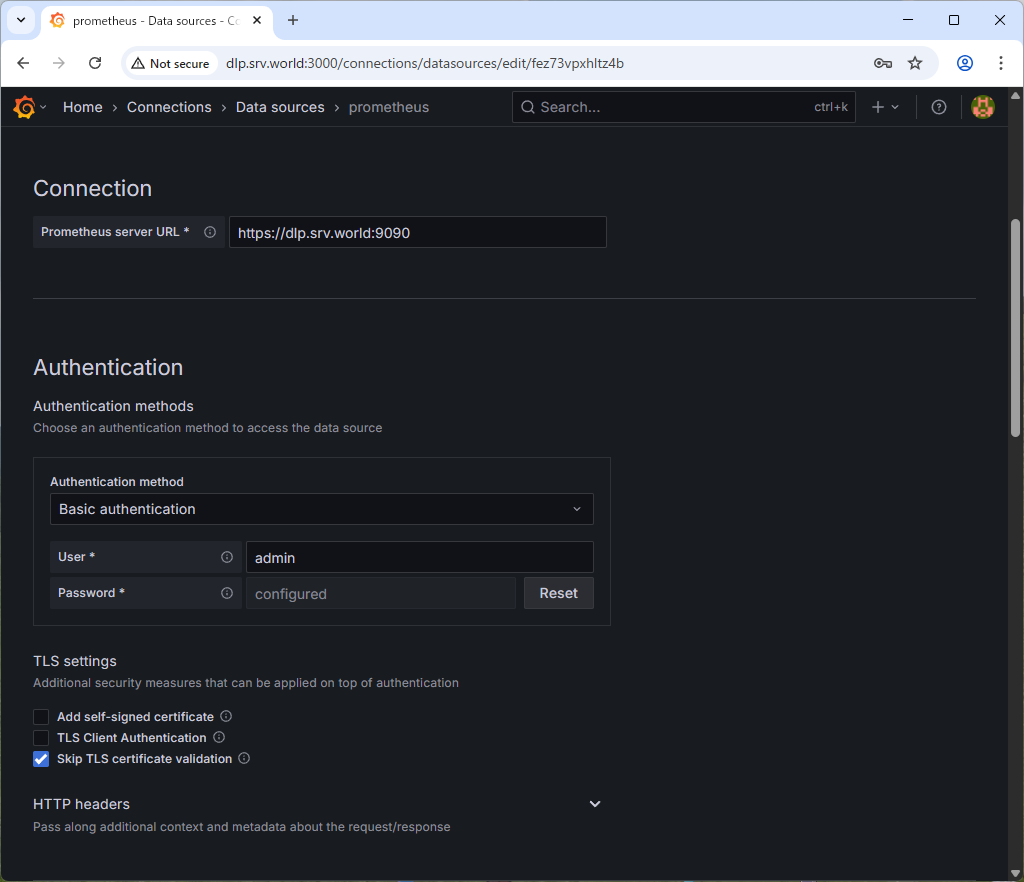

[5] Enter the endpoint URL of your Prometheus server in the URL field and click the Save & Test button at the bottom of the screen.
If you have enabled authentication or HTTPS, configure the necessary settings accordingly.

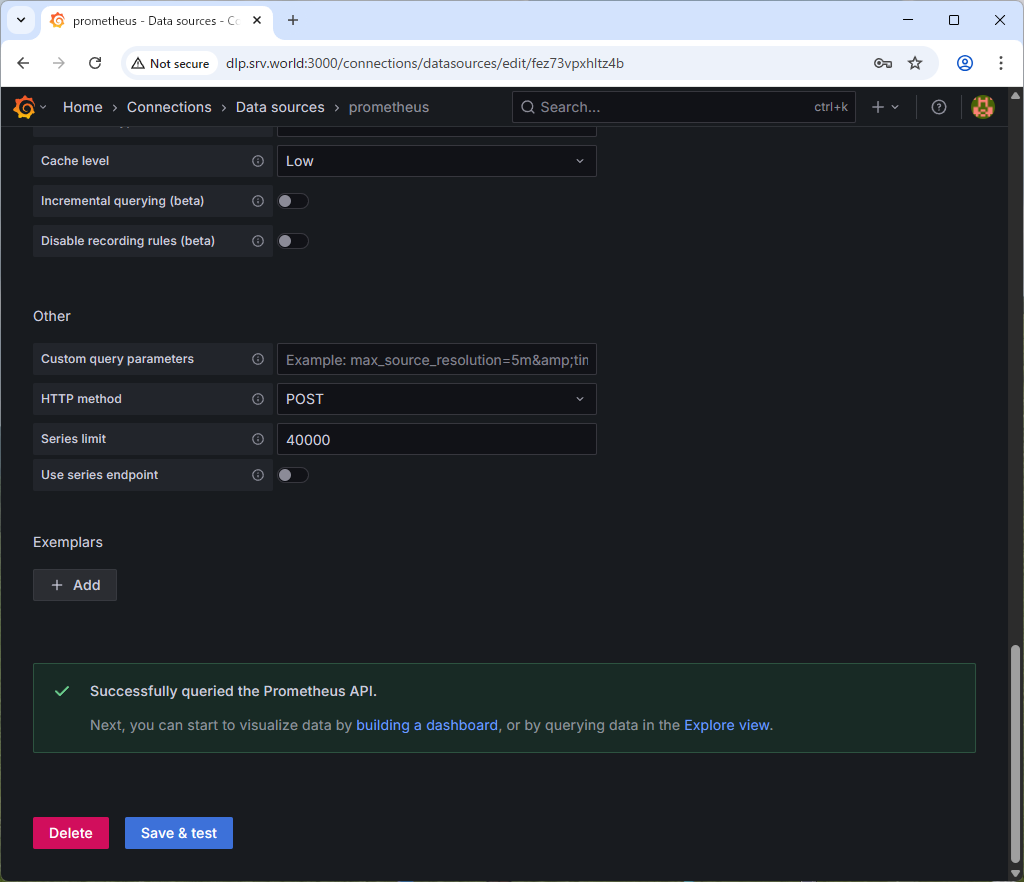

If there are no problems, you will see the message [Successfully queried the prometheus API].

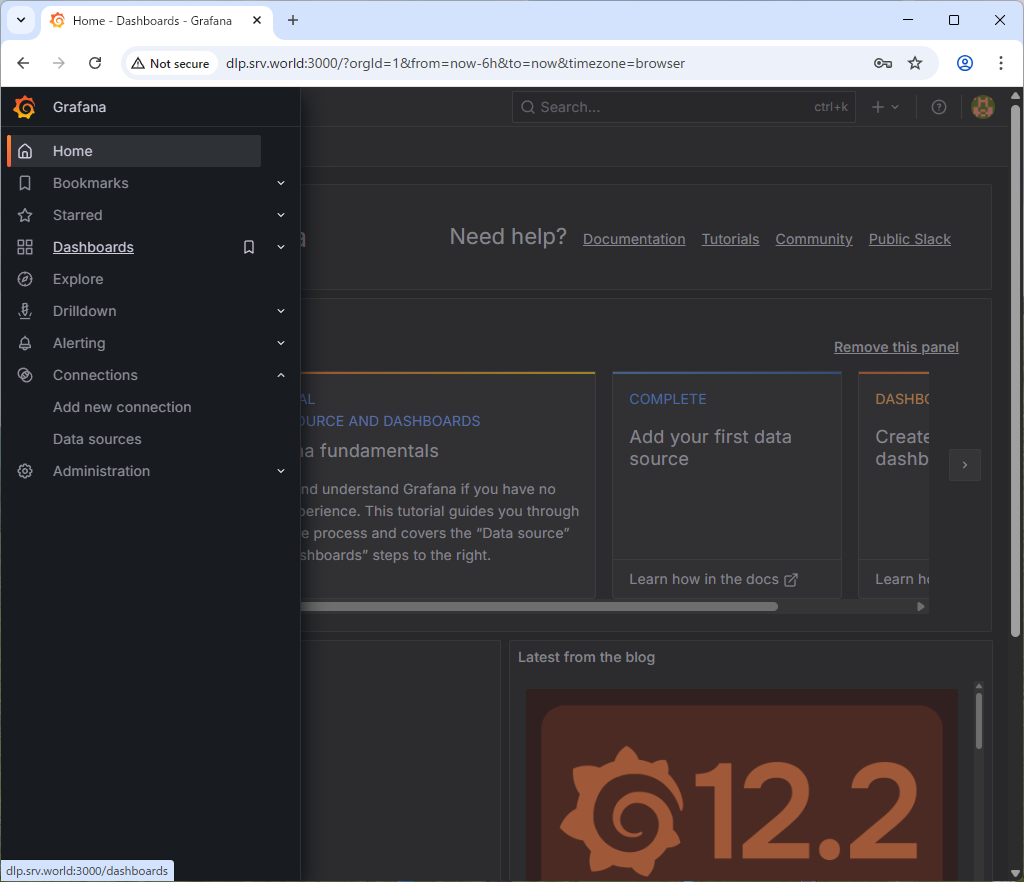

[6] Next, Click [Dashboard] on the left menu.

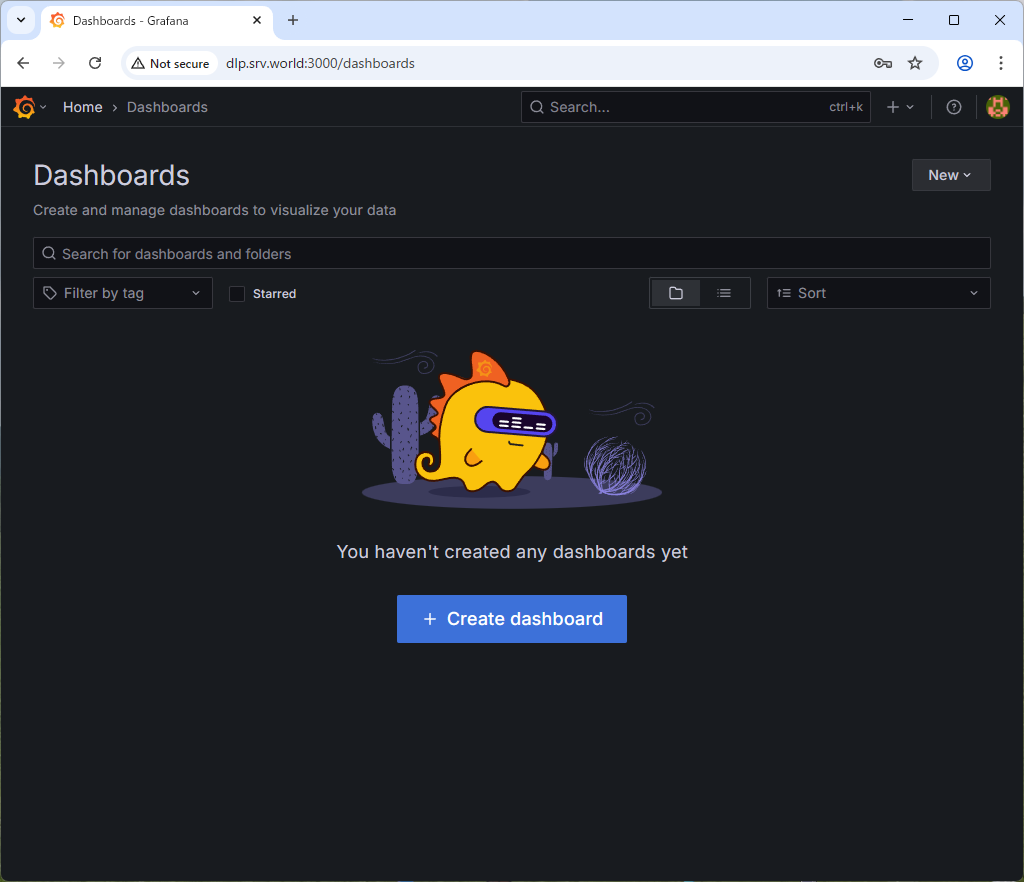

[7] Click [Create Dashboard].

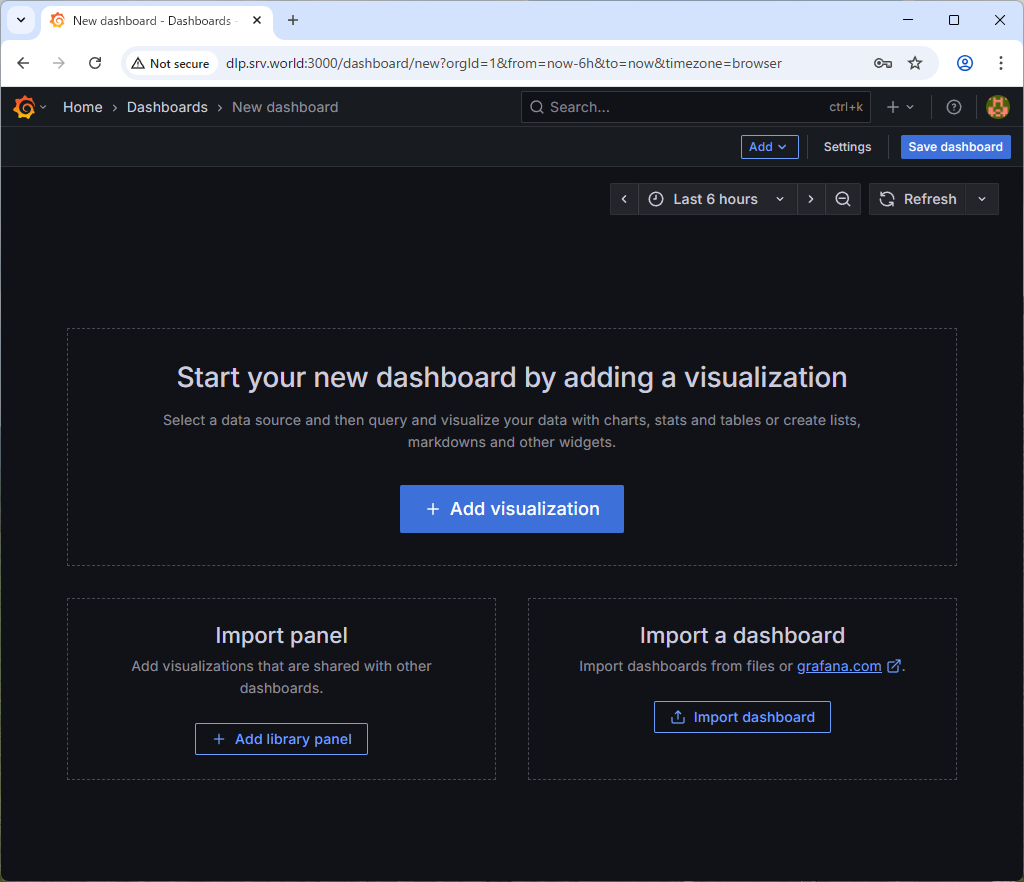

[8] Click [Add visualization].

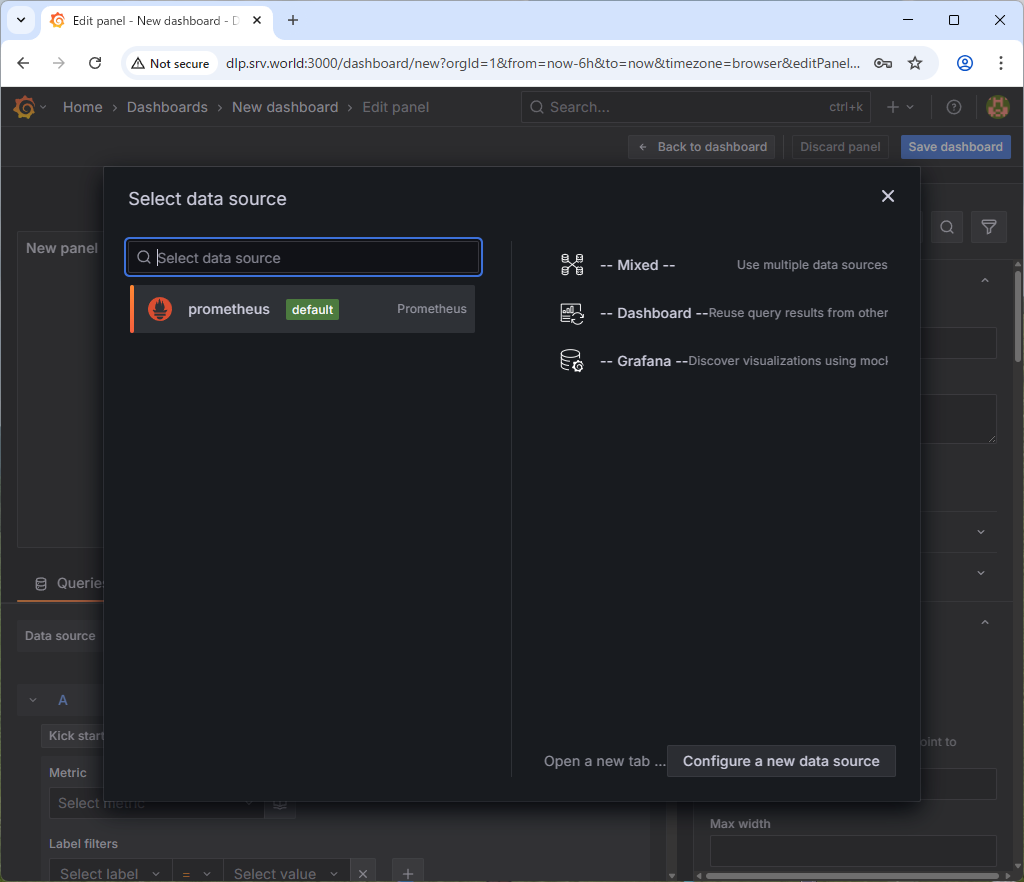

[9] Click [Prometheus].

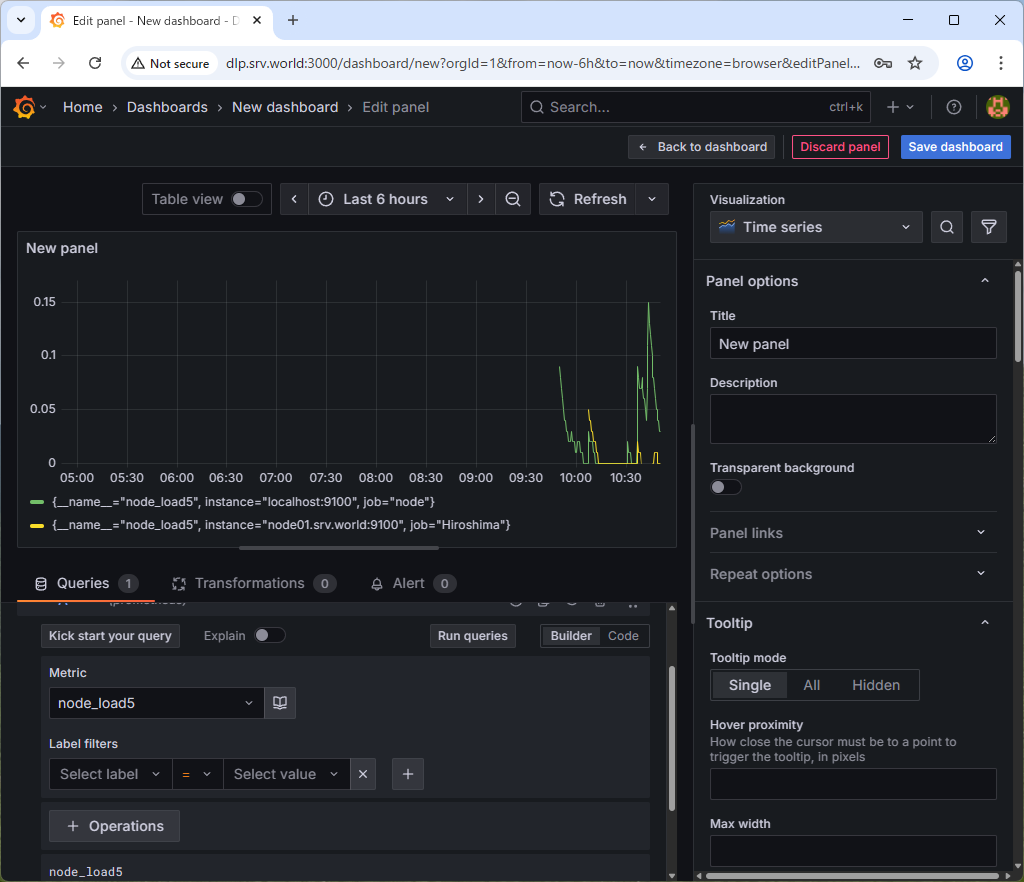

[10] From the Metrics field, select the query for the data you want to graph.
Once you select a query, it will be graphed. To save the Dashboard, click the Save button at the top.

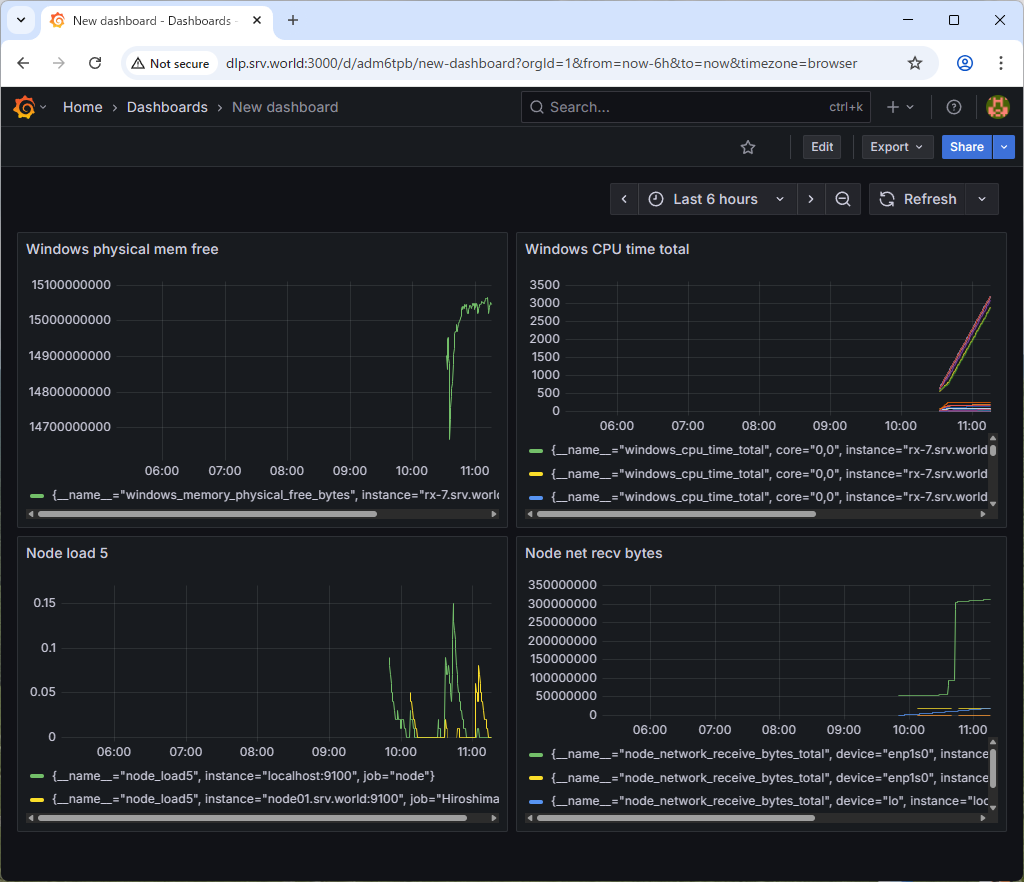

[11] By adding queries, it is also possible to display multiple graphs on one screen.
