Debian 13 trixie

Prometheus : Add Monitoring Target2025/09/26

	Add Monitoring Target Nodes.
[1]	Install [node-exporter] package on the Node you'd like to add that includes features to get metric data of general resource on the System like CPU or Memory usage.

root@node01:~#

apt -y install prometheus-node-exporter

[2]	Add setting on Prometheus Server Configuration.

root@dlp:~#

vi /etc/prometheus/prometheus.yml

.....
.....
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped
from this config.
  - job_name: 'prometheus'

    # Override the global default and scrape targets from this job every 5 seconn
ds.
    scrape_interval: 5s
    scrape_timeout: 5s

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ['localhost:9090']

  - job_name: node
    # If prometheus-node-exporter is installed, grab stats about the local
    # machine by default.
    # line 44 : add new Host to [targets] line
    static_configs:
      - targets: ['localhost:9100', 'node01.srv.world:9100']

  # alternatively, if you'd like to add to another group,
  # add [job_name] section like follows
  # any name is OK for [job_name]
  - job_name: Hiroshima
    static_configs:
      - targets: ['node01.srv.world:9100']

root@dlp:~#

systemctl restart prometheus

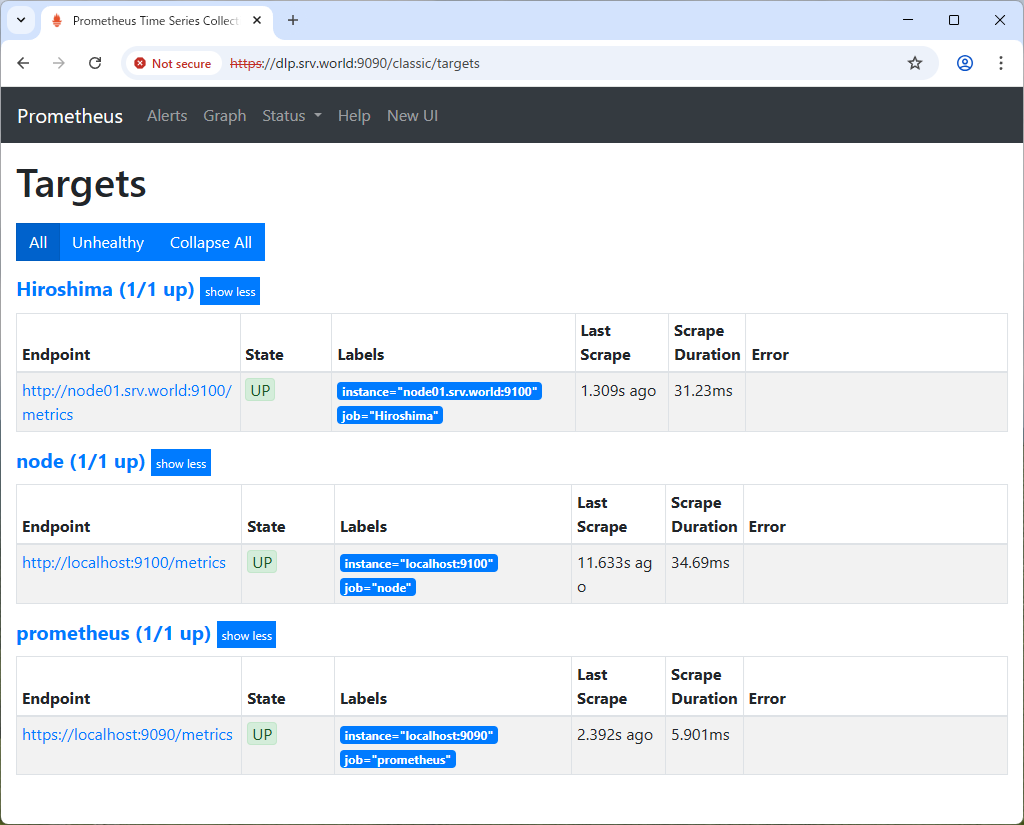

[3]	Access to the Prometheus Web UI and click [Status] - [Targets] to verify new nodes are listed.

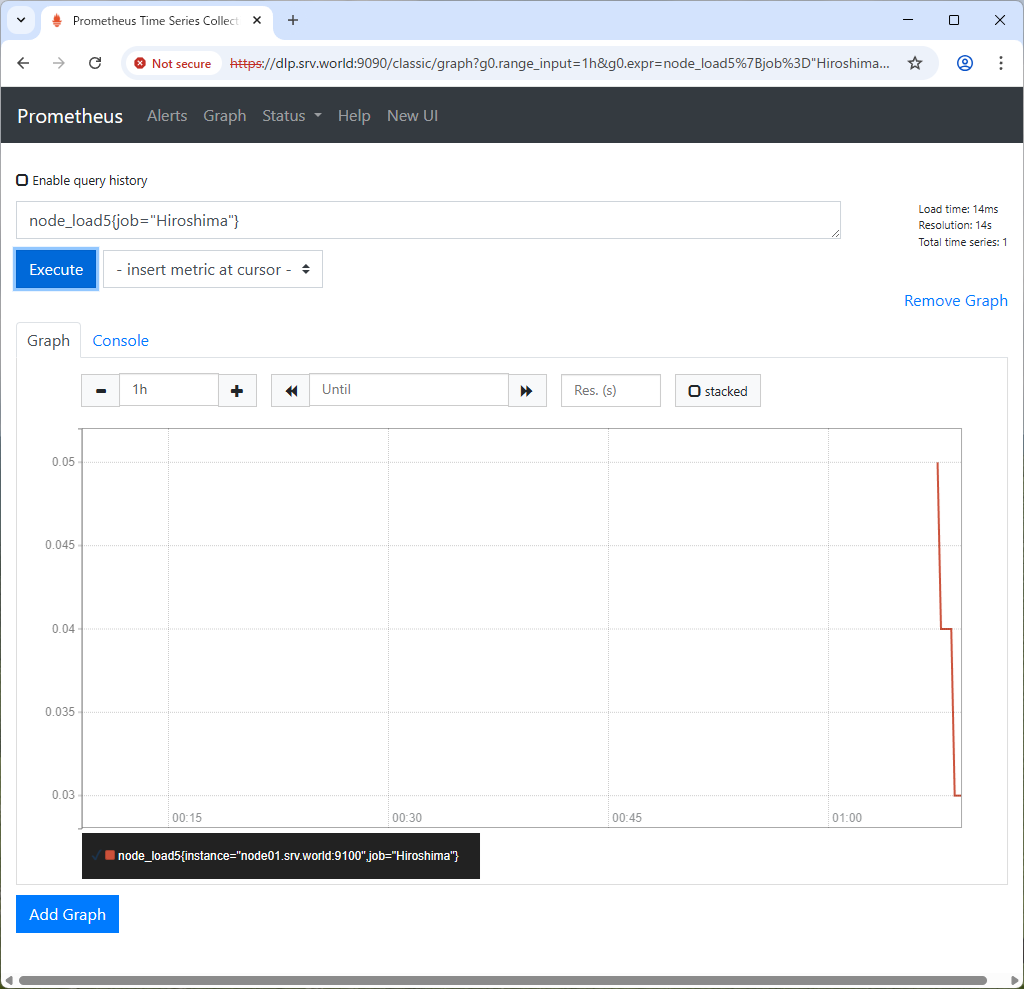

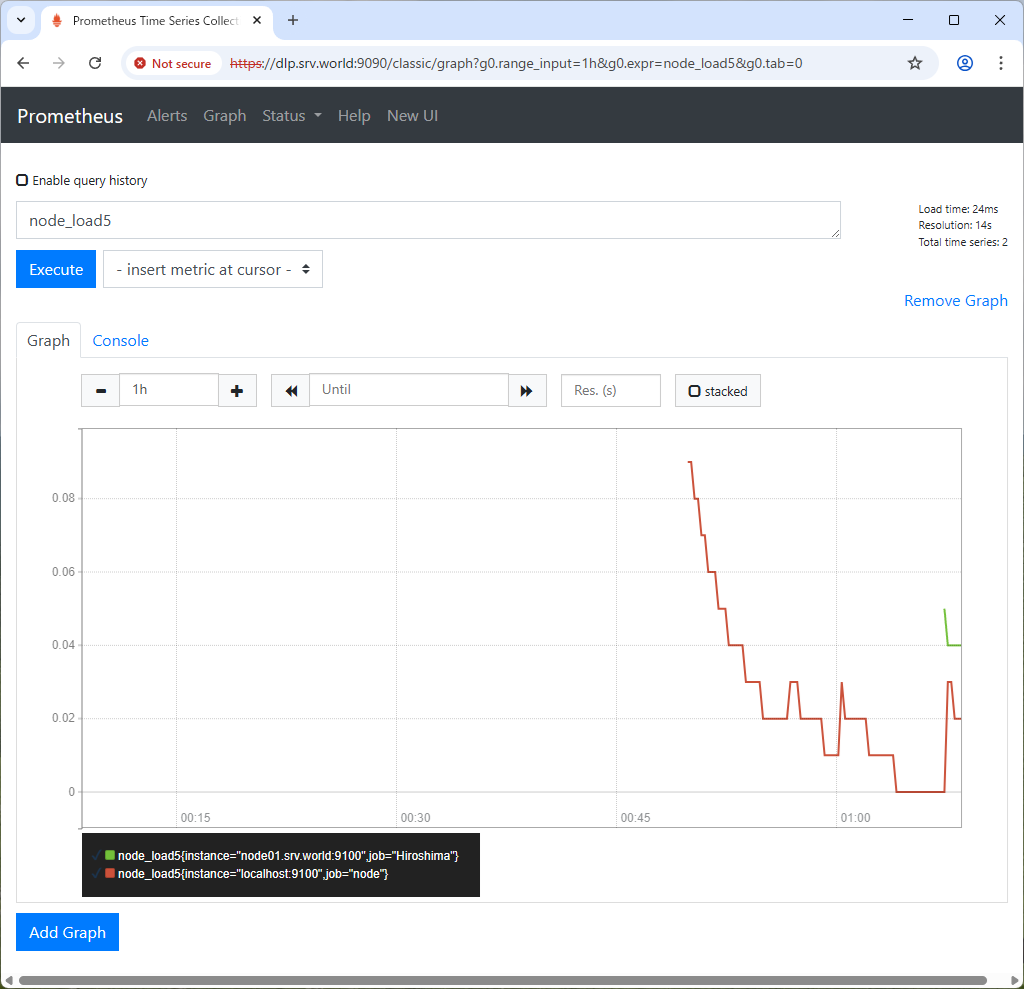

[4]	To input query directly, it's possible to display specific Job or Node. The example below shows a Job for [node_load5]. ⇒ node_load5{job="Hiroshima"}

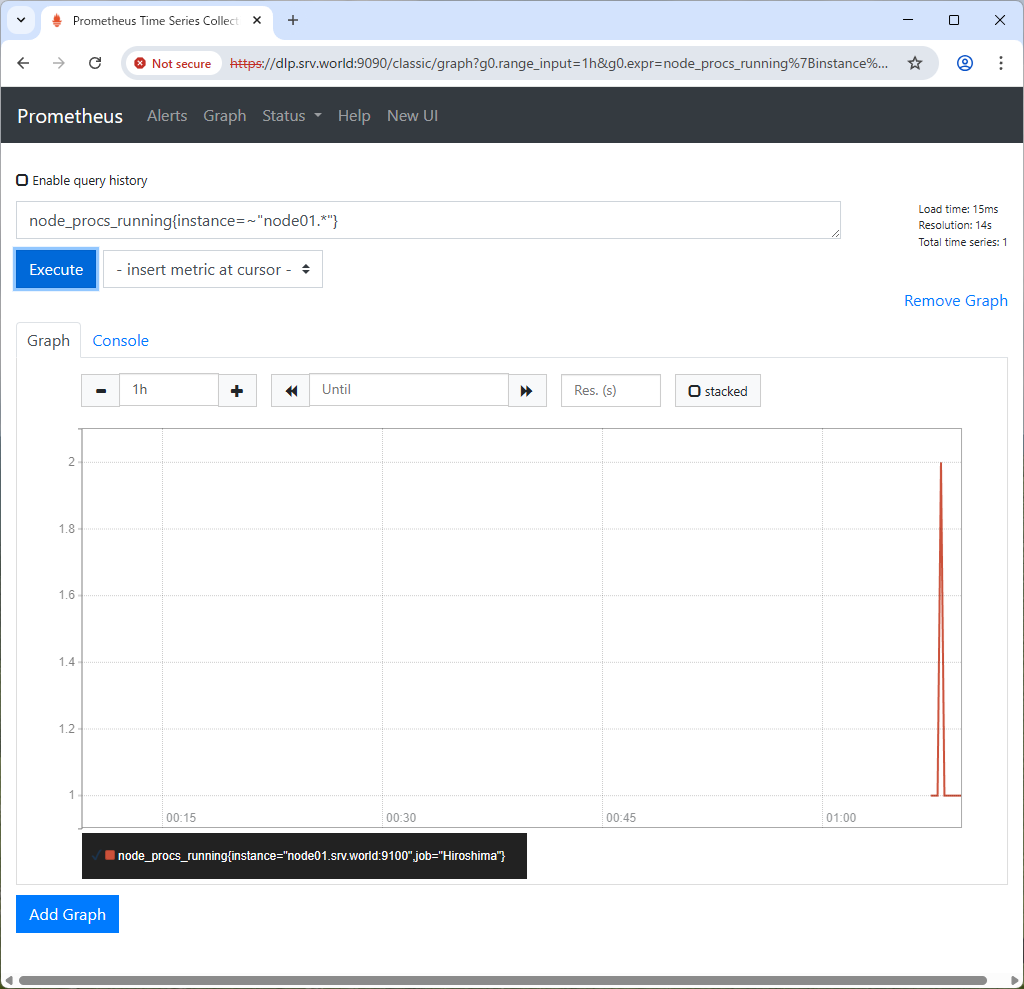

[5]	The example below shows a Node for [node_procs_running]. ⇒ node_procs_running{instance=~"node01.*"}
