Cacti : Set Threshold2025/10/03 |
|
Set Thresholds. For example, set Threshold to CPU load average on here. |
|
| [1] | Login to the Cacti admin site and Click [Management] - [Thresholds] on the left pane, then Click [+] button on the right pane. |
|

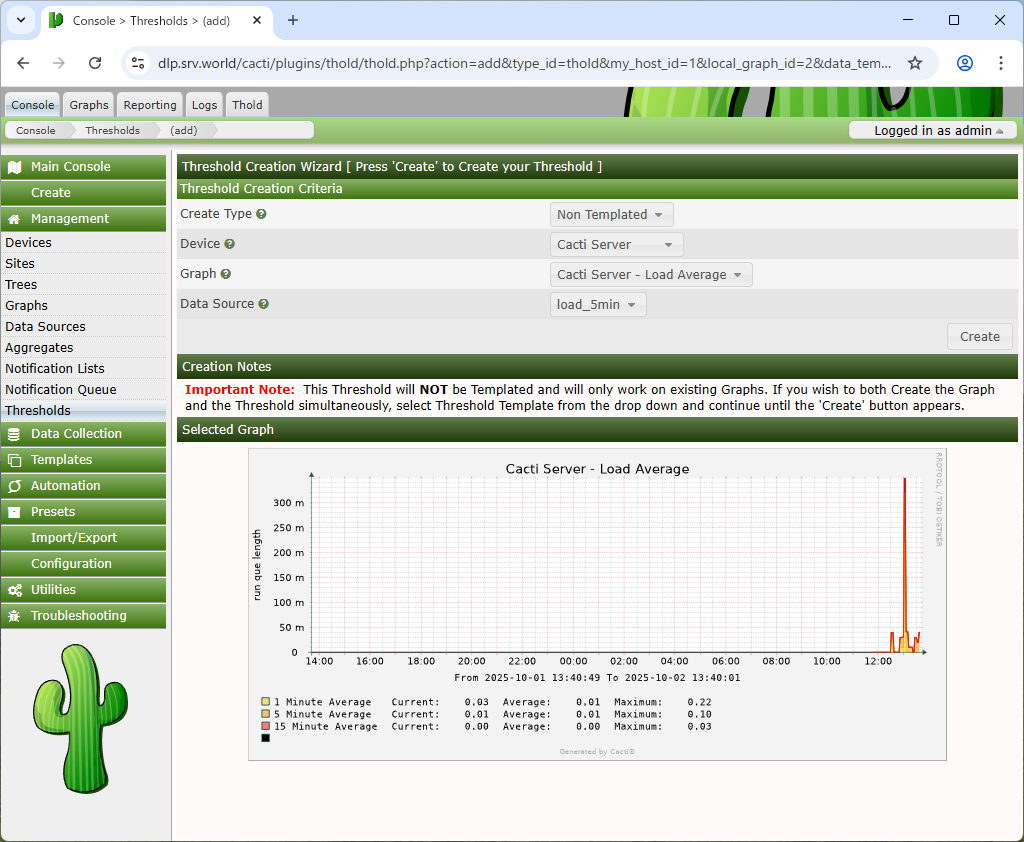

| [2] | Set Thresholds. For [Create Type] field, Select templated or non-templated. (select non-templated on this example) For [Device] field, Select a device you'd like to set Thresholds. For [Graph] field, Select a Graph you'd like to set Thresholds. For [Data Sorce] field, Select a data source. |
|

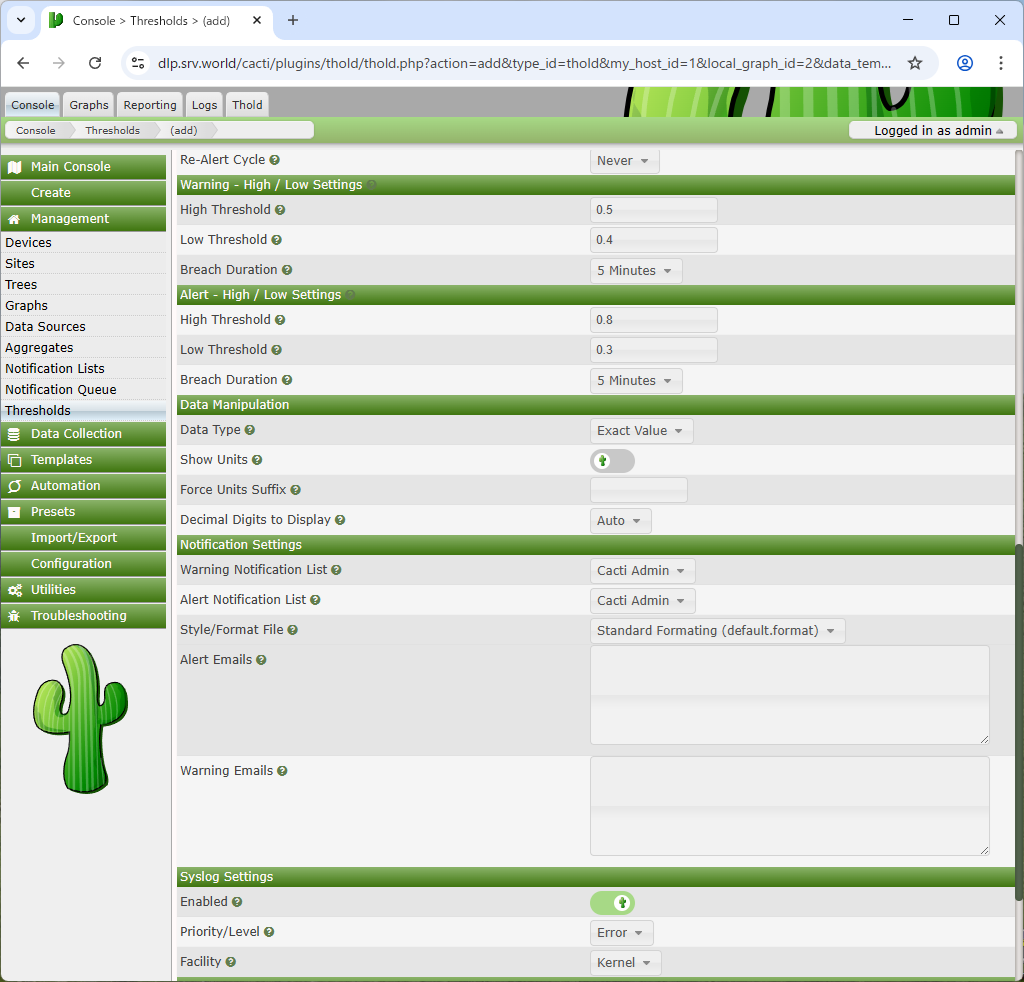

| [3] | After clicking [Create] button, following screen is shown. Set Thresholds on here. |
|

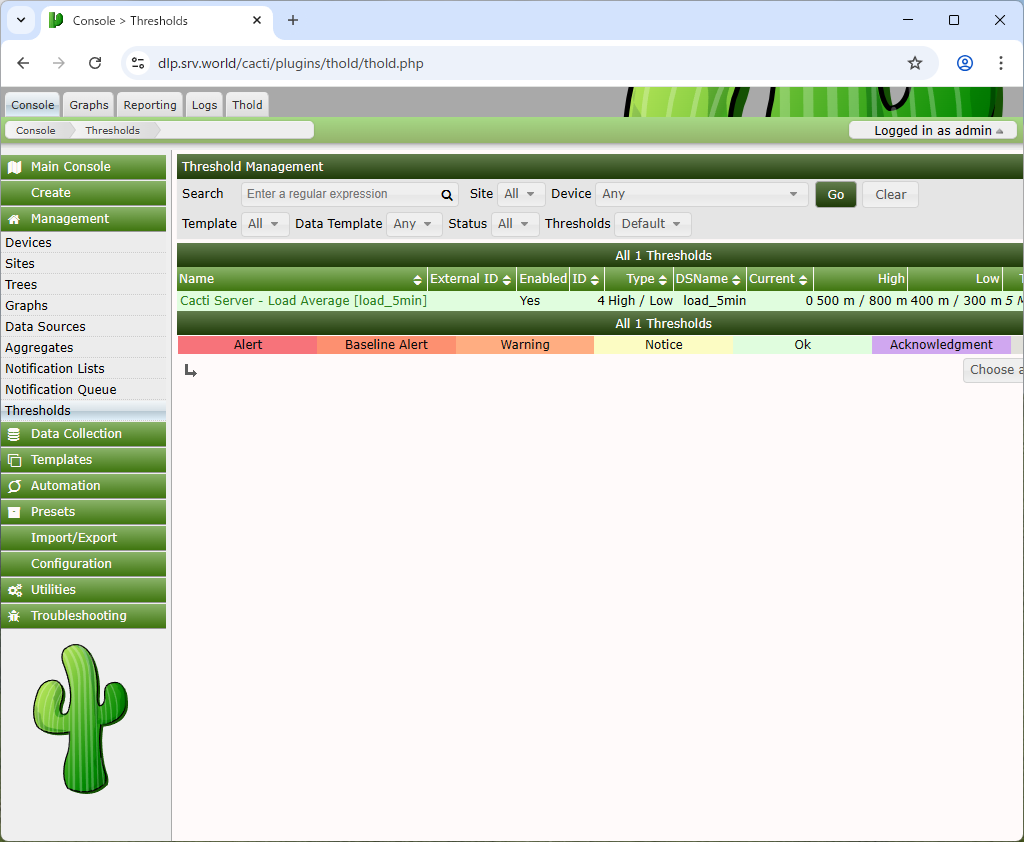

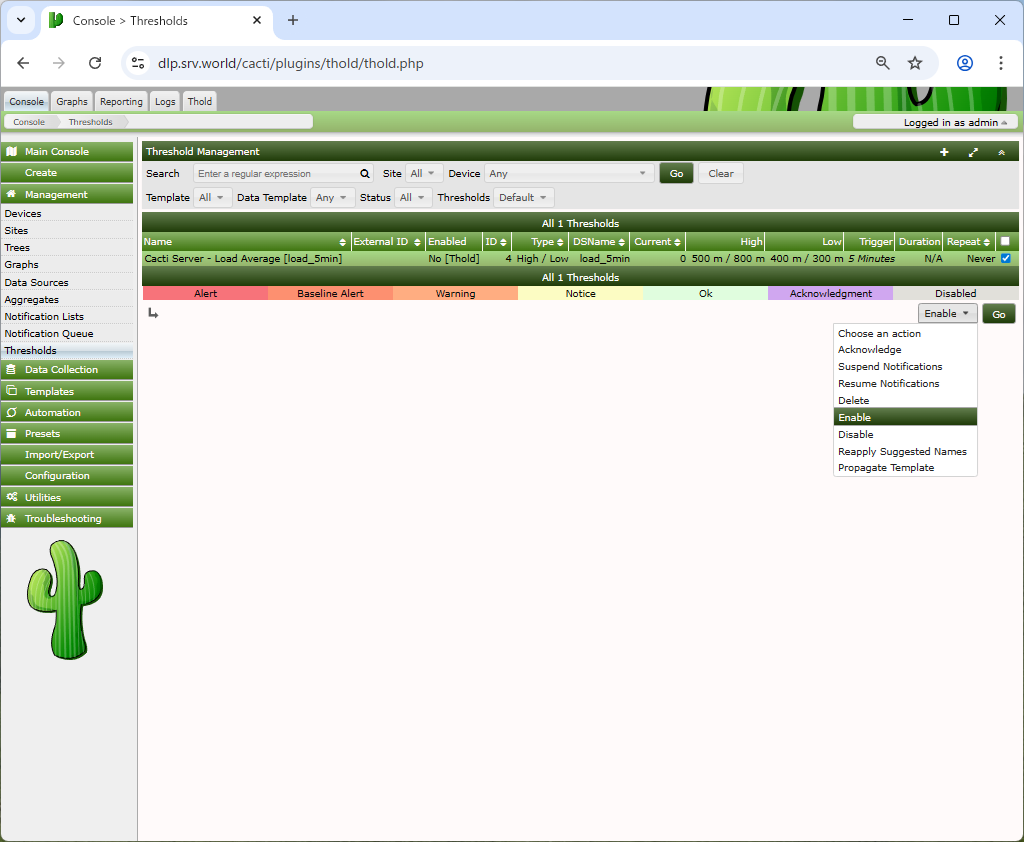

| [4] | After creating Thresholds successfully, it will be displayed on [Thresholds] list. After creating it, it is still disabled, so enable it like follows. |
|
| [5] | After enabling a Thresholds entry, background color turns to green. |
|

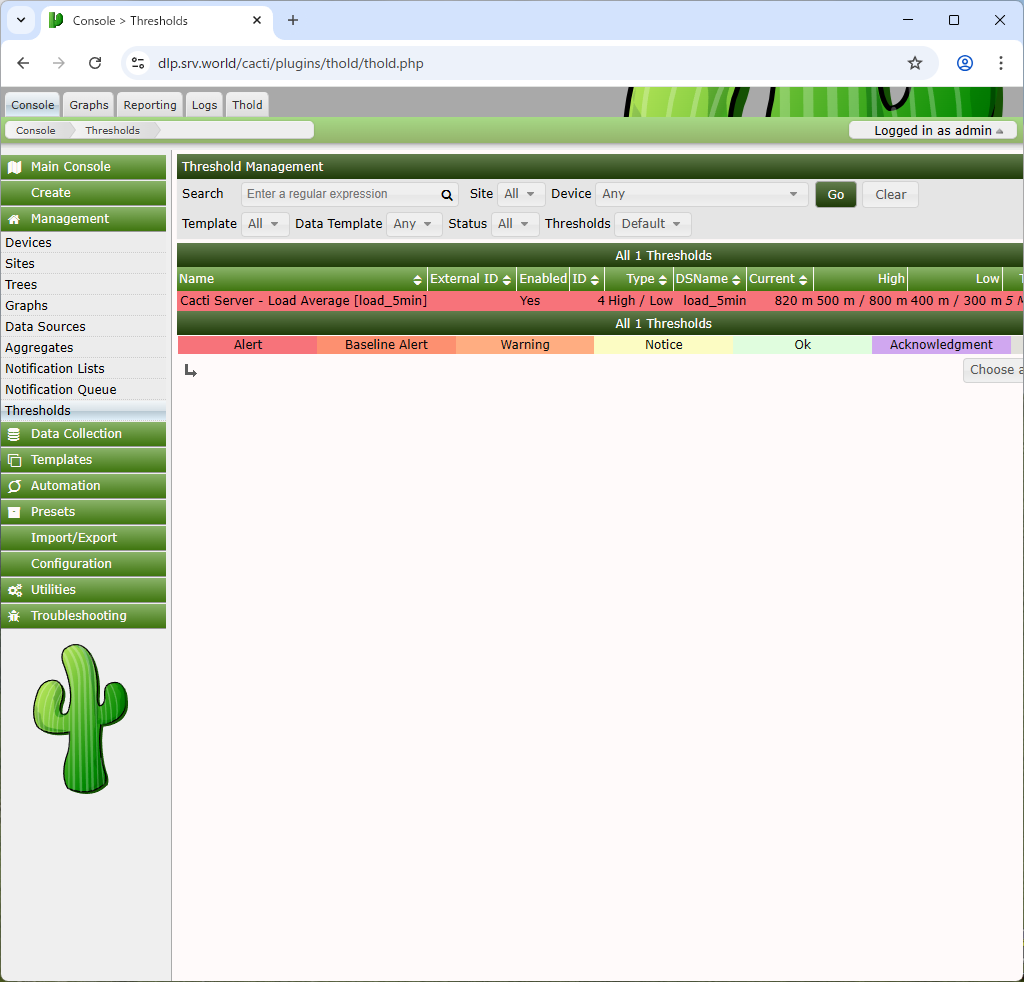

| [6] | If system values are over from Thresholds, background color turns to red. |
|
| [7] | If system values are over from Thresholds, notification email will be sent if you set notification list. |
Return-Path: <root@dlp.srv.world>
X-Original-To: root@dlp.srv.world
Delivered-To: root@dlp.srv.world
Received: by dlp.srv.world (Postfix, from userid 33)
id 042AAE0621; Thu, 02 Oct 2025 14:00:03 +0900 (JST)
To: root@dlp.srv.world
Subject: ALERT: Cacti Server - Load Average [load_5min] went above Threshold of 800 m with 820 m
Date: Thu, 2 Oct 2025 05:00:02 +0000
From: Cacti Admin <root@dlp.srv.world>
Message-ID: <PSG8Dl1H9pNWWC6iEqQxUHBIclgZqebZynOfeU0DVc@dlp.srv.world>
X-Mailer: PHPMailer 6.9.3 (https://github.com/PHPMailer/PHPMailer)
X-Mailer: Cacti-Thold-v1.8.2
User-Agent: Cacti-Thold-v1.8.2
MIME-Version: 1.0
Content-Type: text/plain; charset=UTF-8
Content-Transfer-Encoding: base64
.....
.....
|
