Prometheus : Enable authentication and HTTPS2026/03/26

	Enable basic authentication and HTTPS for Prometheus endpoint.
[1]	Get SSL Certificate, or Create self-signed Certificate. It uses self signed Certificate on this example.
[2]	Configure Prometheus.

[root@dlp ~]#

dnf -y install httpd-tools

# generate password with bcrypt hash
# set any username you like

[root@dlp ~]#

htpasswd -nB admin

New password:
Re-type new password:
admin:$2y$05$YiwxCed5svCX6OjsHsELreKcWr3GdNfgg9xmigPUWv4oskKBRltLC

[root@dlp ~]#

cp /etc/pki/tls/private/{server.crt,server.key} /etc/prometheus/

[root@dlp ~]#

chown prometheus:prometheus /etc/prometheus/{server.crt,server.key}

[root@dlp ~]#

vi /etc/prometheus/web.yml

# create new
# specify your certificate
tls_server_config:
  cert_file: server.crt
  key_file: server.key

# specify username and password generated above
basic_auth_users:
  admin: $2y$05$YiwxCed5svCX6OjsHsELreKcWr3GdNfgg9xmigPUWv4oskKBRltLC

[root@dlp ~]#

vi /etc/default/prometheus

# line 5 : add like follows
ARGS='--web.config.file=/etc/prometheus/web.yml'

[root@dlp ~]#

vi /etc/prometheus/prometheus.yml

.....
.....
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped
from this config.
  - job_name: 'prometheus'

    # Override the global default and scrape targets from this job every 5 seconn
ds.
    scrape_interval: 5s
    scrape_timeout: 5s

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.
    # line 36 : add settings for certificate and authentication
    scheme: https
    tls_config:
      cert_file: /etc/prometheus/server.crt
      key_file: /etc/prometheus/server.key
      # if using self-signed certificate, set [true]
      insecure_skip_verify: true
    basic_auth:
      username: 'admin'
      password: 'password'

    static_configs:
      # if using valid certificate, set the same hostname in certificate
      - targets: ["localhost:9090"]

[root@dlp ~]#

systemctl restart prometheus

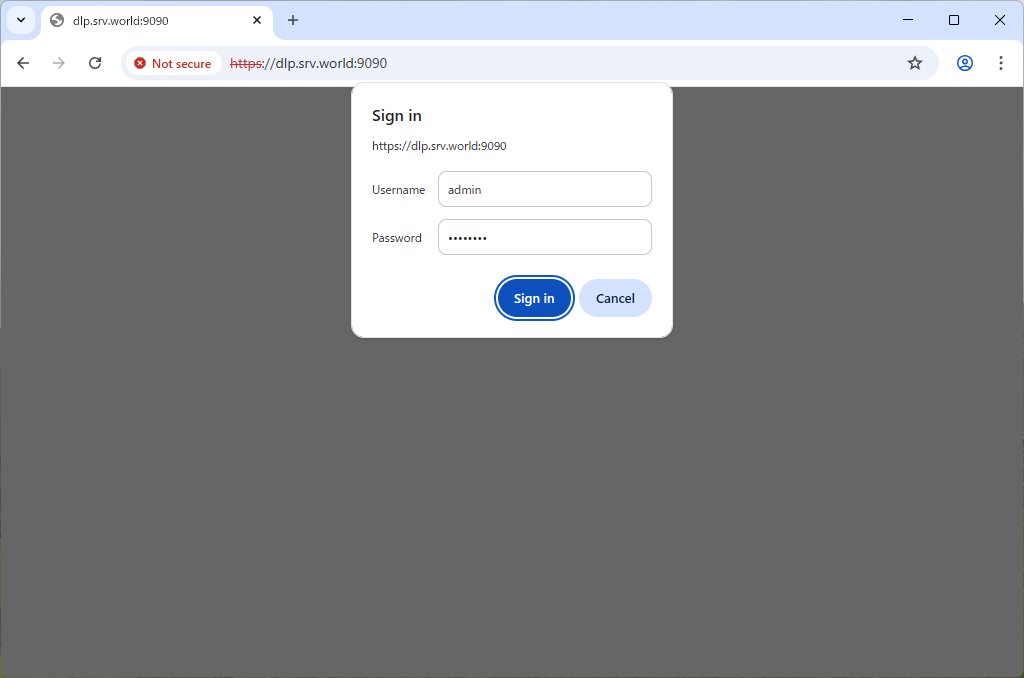

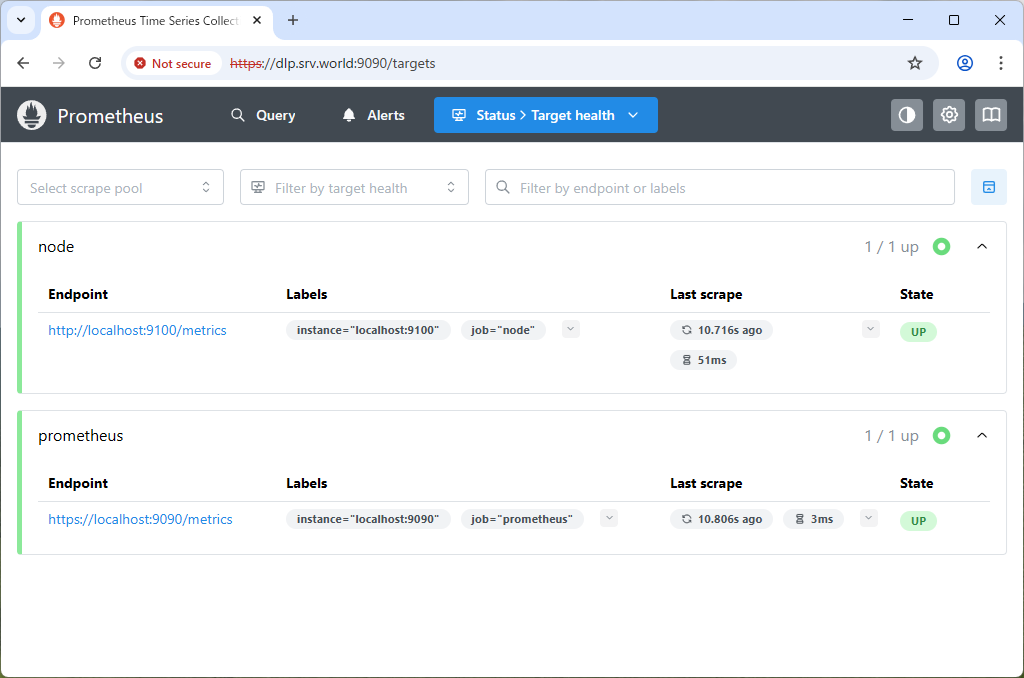

[3]	Access to Prometheus endpoint via HTTPS, then that's OK if you can successfully authenticate with the username and password you set.
