Prometheus : Install2026/03/26


Install Systems monitoring and Alerting toolkit [Prometheus].

Learn Overview about Prometheus on the official site below.
⇒ https://prometheus.io/docs/introduction/overview/

[1] Install Prometheus.
Install Prometheus Server and also Install [node-exporter] that includes features to get metric data of general resource on the System like CPU or Memory usage.
# install from EPEL

[root@dlp ~]#
dnf --enablerepo=epel -y install prometheus node-exporter
[2] Configure basic settings on [prometheus.yml].
# the default setting is like follows
# even if keeping default for localhost, [Prometheus] server related metrics are collected

[root@dlp ~]#
vi /etc/prometheus/prometheus.yml
global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

  # Attach these labels to any time series or alerts when communicating with
  # external systems (federation, remote storage, Alertmanager).
  external_labels:
      monitor: 'example'

# Alertmanager configuration
alerting:
  alertmanagers:
  - static_configs:
    - targets: ['localhost:9093']

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'

    # Override the global default and scrape targets from this job every 5 seconds.
    scrape_interval: 5s
    scrape_timeout: 5s

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ['localhost:9090']

  - job_name: node
    # If prometheus-node-exporter is installed, grab stats about the local
    # machine by default.
    static_configs:
      - targets: ['localhost:9100']
[root@dlp ~]#
systemctl enable --now prometheus node_exporter
[3] If Firewalld is running, allow services.
[root@dlp ~]#
firewall-cmd --add-service=prometheus

success
[root@dlp ~]#
firewall-cmd --runtime-to-permanent

success

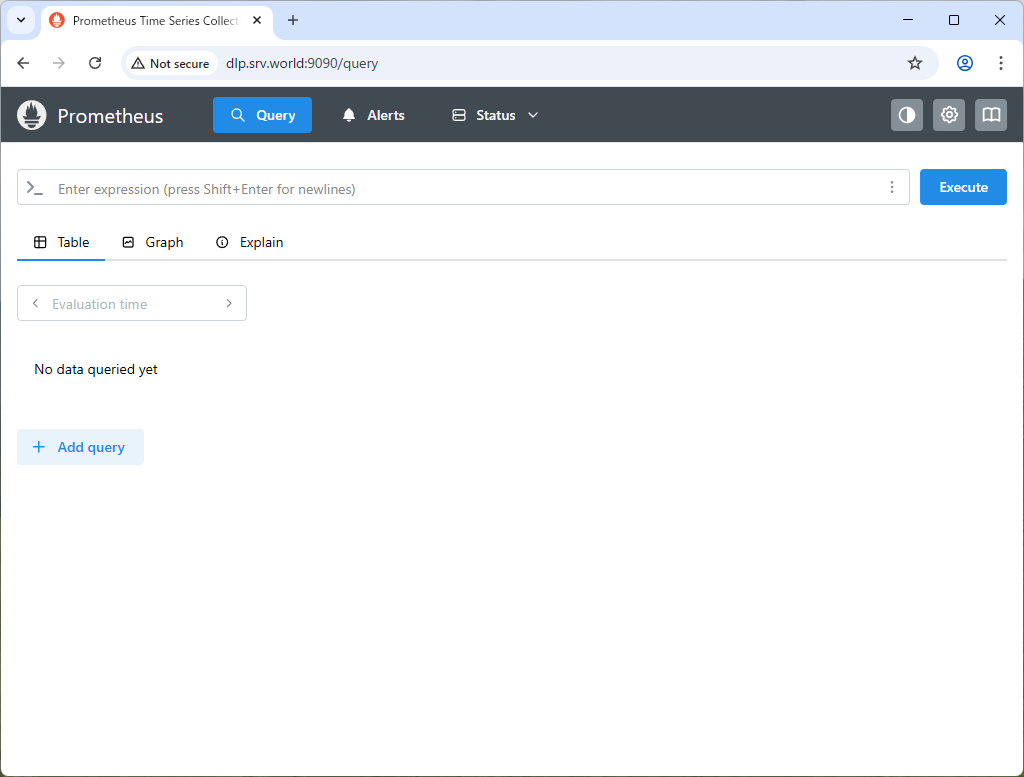

[4] Access to the [http://(Prometheus server's hostname or IP address):9090/] from a client computer, Then, Prometheus Web UI is shown like follows.
[5]

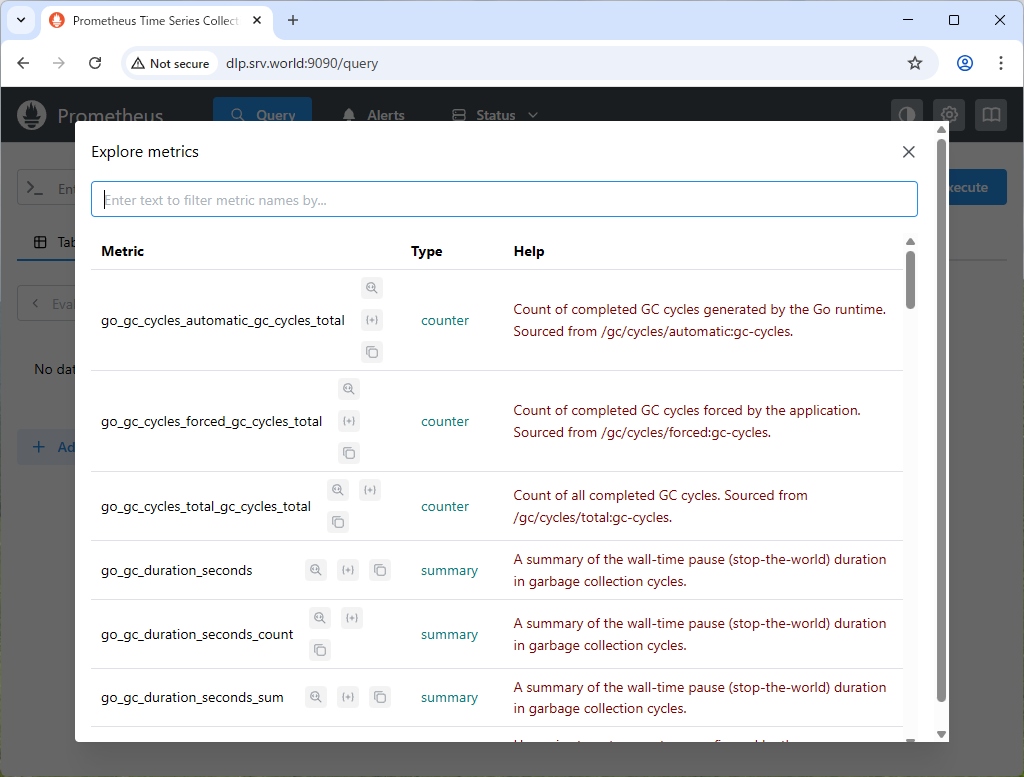

To click [Metrics Exporter], there are many queries to view time series data.
It's also possible to input queries directly on the input form above, by Prometheus [Expression Language].

Refer to the official document about usage of Expression Language.
⇒ https://prometheus.io/docs/querying/examples/

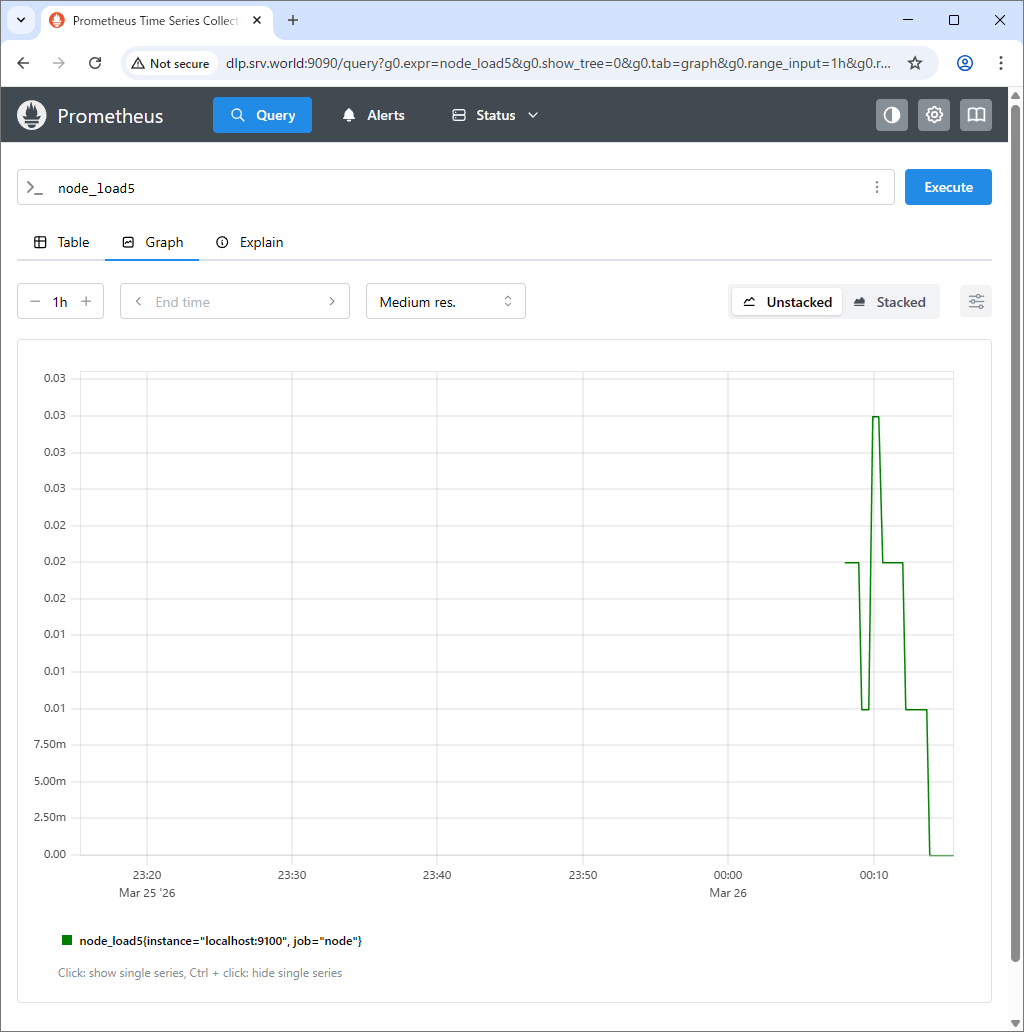

[6] This is the state of executing [node_load5].

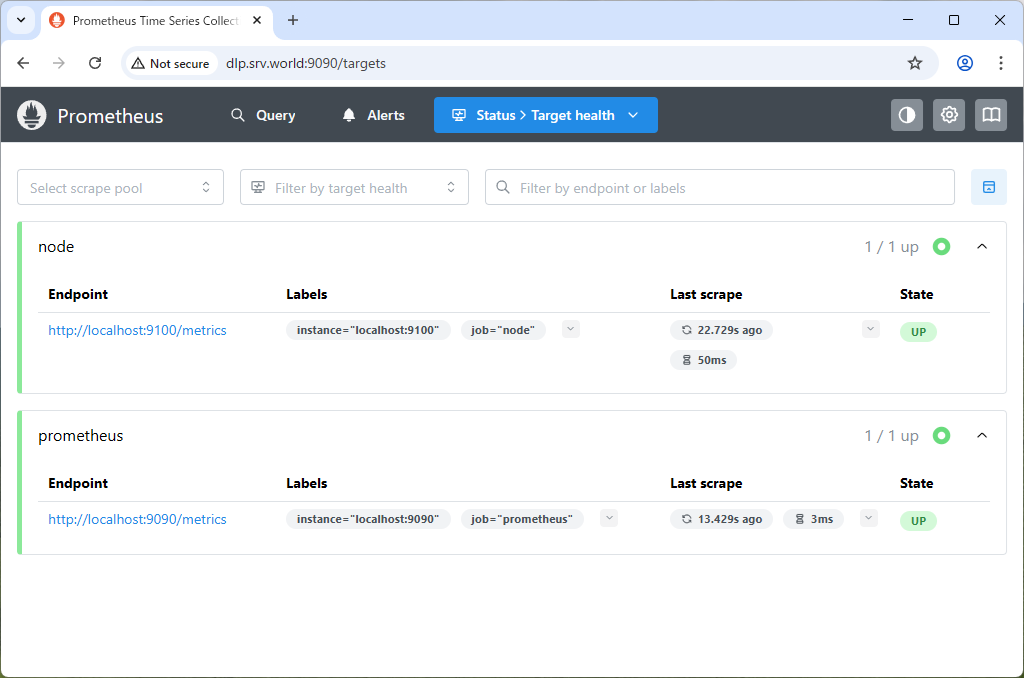

[7] To click [Status] - [Targets], possible to confirm status for each node.
