Install Squid2011/05/05

  Configure Squid as a Reverse Proxy.

[1] Install Squid
root@lan:~#
aptitude -y install squid3


root@lan:~#
vi /etc/squid3/squid.conf


acl CONNECT method CONNECT
# line 706: define ACL for internal

acl lan src 10.0.0.0/24


http_access allow localhost
# line 830: add (set ACL for internal)

http_access allow lan


# line 1117: change

http_port
8080


# line 3368: add follows

request_header_access Referer deny all
request_header_access X-Forwarded-For deny all
request_header_access Via deny all
request_header_access Cache-Control deny all


# line 3653: add (define hostname)

visible_hostname lan.srv.world


# forwarded_for on
# line 5384:: add (hide IP address)

forwarded_for off


root@lan:~#
/etc/init.d/squid3 restart

* Restarting Squid HTTP Proxy 3.x squid3
* Waiting...
...done.
* Creating Squid HTTP Proxy 3.x cache structure
2011/05/05 03:31:41| Creating Swap Directories
...done.

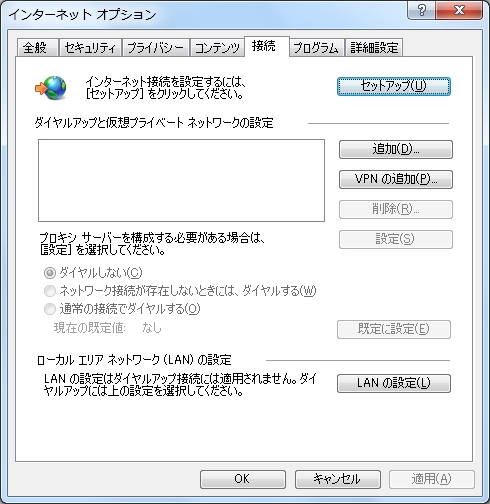

[2] Start Web browser on your client PC. This is the example on Internet Explorer 9. Select [Tools] - [Internet Options] and move to [Connections] tab like below.

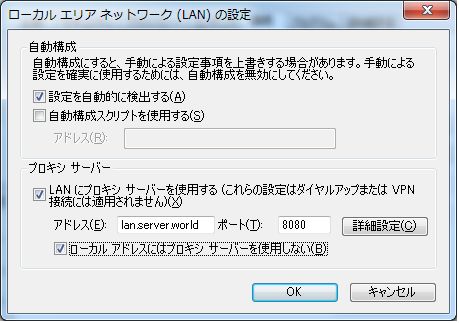

[3] Check 'use a proxy' and input server's hostname and port number set in the section [1]. Then, you can access to internet through proxy server.
